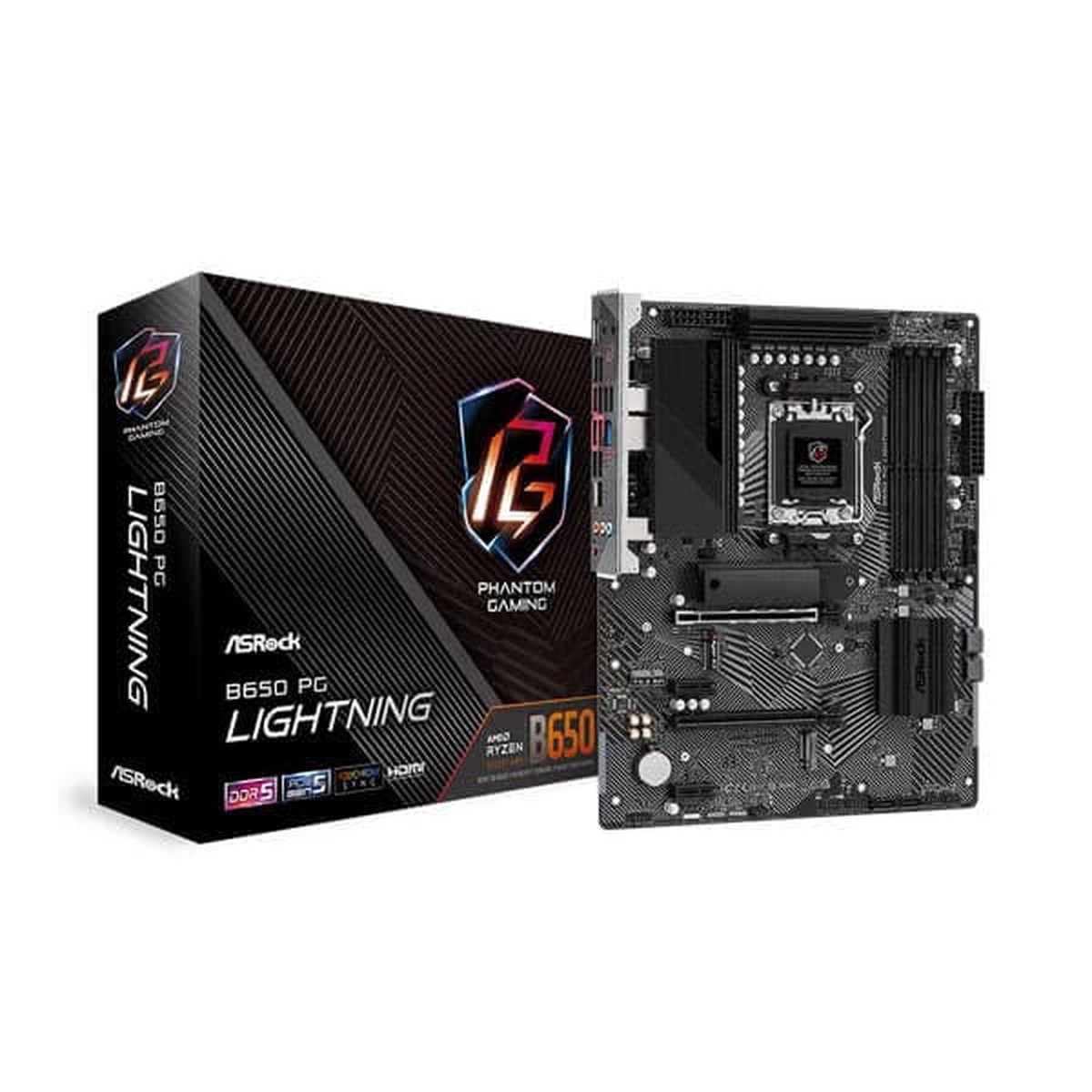

ASROCK B650 Phantom Gaming Lightning DDR5 AMD Motherboard

Features of ASROCK B650 Phantom Gaming Lightning DDR5 AMD Motherboard

1. This ASROCK B650 Phantom Gaming LightningDDR5 AMD Motherboard Supports AMD Ryzen 7000 Series Processors
2. 14+2+1 Phase Power Design, SPS
3. 4 x DDR5 DIMMs, supports up to 6400+(OC)
4. 1 PCIe 4.0 x16, 1 PCIe 4.0 x16, 2 PCIe 4.0 x1, 1 M.2 Key-E for WiFi
5. Graphics Output Options: 1 HDMI
6. 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
7. 1 Blazing M.2 (PCIe Gen5x4), 1 Hyper M.2 (PCIe Gen4x4), 1 M.2 (PCIe Gen4x2), 4 SATA3
8. 1 USB 3.2 Gen2x2 Type-C (Rear), 1 USB 3.2 Gen2 Type-C (Front), 9 USB 3.2 Gen1 (7 Rear, 2 Front), 8 USB 2.0 (4 Rear, 4 Front)
9. Realtek 2.5G LAN


Optimized VRM Design

• SPS (Smart Power Stage)

Dr.MOS design features the latest SPS (Smart Power Stage) technology. Its optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.

• 14+2+1 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

8 Layer PCB Design

The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, ensures a reliable and long-lasting system while delivering ultimate performance without any compromise.

Extreme Overclocking Performance

• DDR5 EXPO & XMP Support

Derived from the built for stable and reliable designing concept, ASRock does not compromise on any details. All B650 motherboards are built with 8-Layer PCB design, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance up to 6400MHz and beyond by enabling the pre-tested profiles. Make sure the memory modules are AMD EXPO/ Intel XMP capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

• Blazing OC Tuner

The Blazing OC Tuner allows AM5 CPU to switch between OC mode and PBO(Precision Boost Overdrive) mode when the CPU current hits threshold. Anything above current threshold will engage manual OC mode; if below current threshold then will engage Precision Boost Overdrive mode. This idea is to combine overclocking on all cores and automatic boost on a single core to get the best performance out of your CPU. There is no need to enter BIOS to setup up, you can modify all the settings on time under OS.

DDR5 Memory With Protection Circuit

Due to the unique electrical architecture of DDR5 DIMM, theres a high risk of damaging the memory module if AC power isnt disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module.

Nahimic Audio

• Audio That Matters

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

• Enhance Communication Quality

The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.
Static Noise Suppression
Echo Cancellation
Lateral Sound Cancellation
Voice Stabilizer

• Ultimate Gaming Experience

Sound Tracker
The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360 on a radar for a full immersion during the game.

Works on any devices!
Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.

Lightning Gaming Ports

Aimed for die hard gamers and enthusiasts! Lightning Gaming Ports are sourced from two different controller interfaces that assist gamers in connecting the high speed mice/keyboard with the lower jitter and latency!

POLYCHROME RGB

This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects

High Speed M.2 Solution

• PCIe Gen5 Blazing M.2

The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128GB/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.

• XXL M.2 Heatsink

The extra large aluminum alloy M.2 heatsink effectively improves heat dissipation to keep those high speed M.2 SSDs as cool as possible, it is able to give better stability while maintaining top performance.

Phantom Gaming 2.5 Gb/S LAN

The intelligent Phantom Gaming 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, youll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
Automatically detects and accelerates game traffic ahead of other network traffic for smoother, stutter-free in-game performance and the competitive edge.

EZ Setting

• Auto Driver Installer

Optical drive or driver DVD is no longer needed! ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically!
Step1: Install Auto Driver Installer
Step2: ADI will automatically download and install all necessary drivers.
Step3: Done!

• BIOS Flashback

Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.

• Pre-Installed IO Shield

ASRock strives offer only the cutting edge technology with the most user-friendly design. The pre-installed IO Shield design makes motherboard to be well-installed in the chassis precisely for preventing any interferences and speed up the set-up process.

Specifications of ASROCK B650 Phantom Gaming Lightning DDR5 AMD Motherboard
