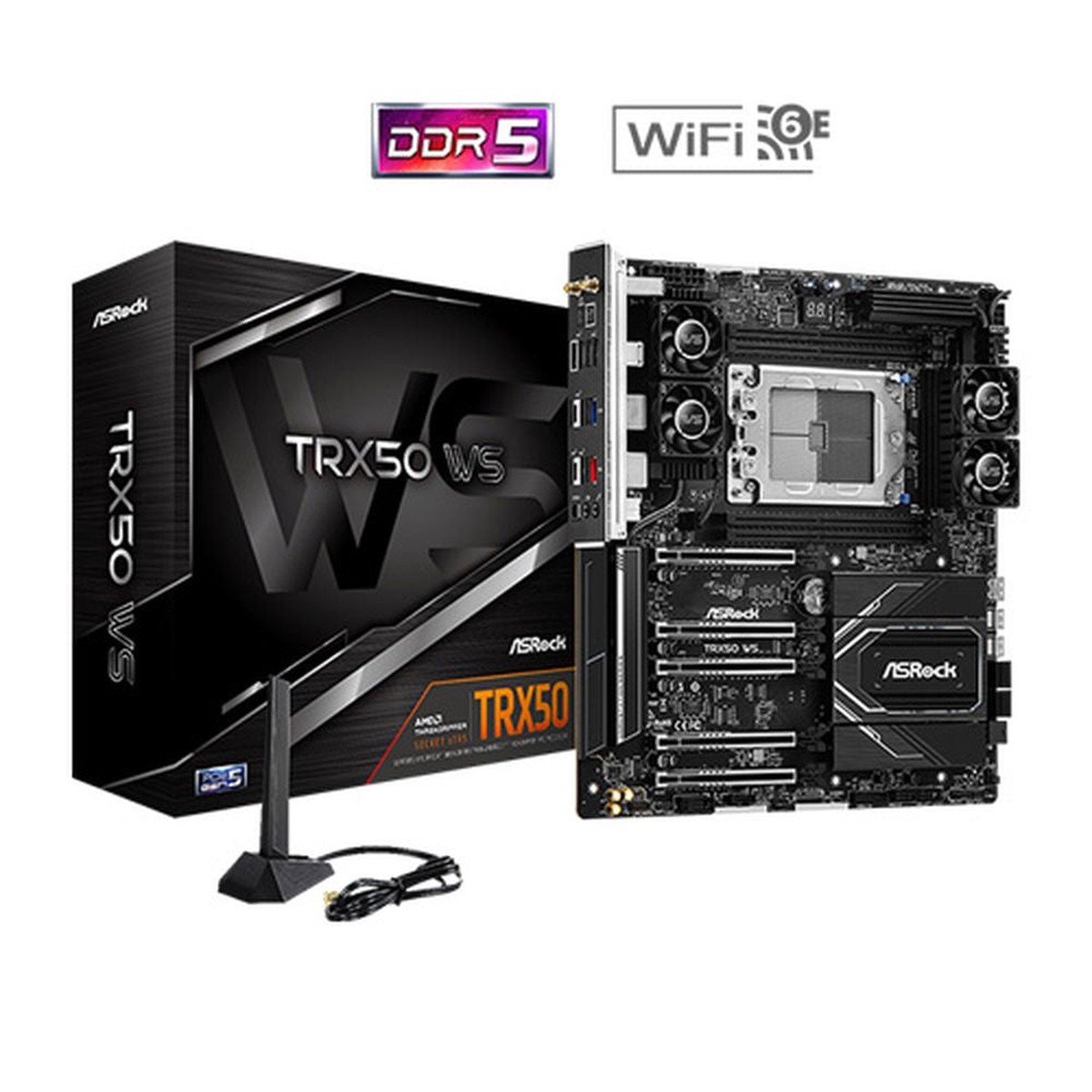

Name: ASROCK TRX50 WS Amd Ryzen 7000 EATX DDR5 STR5 Threadripper Motherboard
SKU: LZ8481870138
Availability: InStock

Description
Reviews (0)

Features of ASROCK TRX50 WS Amd Ryzen 7000 EATX DDR5 STR5 Threadripper Motherboard

Supports AMD Ryzen Threadripper PRO 7000 and AMD Ryzen Threadripper 7000 Series Processors
18+3+3 Power Phase Design, 110A SPS for VCore
Supports 4 DIMMs DDR5 ECC Registered memory
3 PCIe 5.0 x16, 2 PCIe 4.0 x16
Realtek ALC1220 7.1 CH HD Audio, Nahimic Audio
4 SATA3,
-1 Blazing M.2 (PCIe Gen5 x4),1 Hyper M.2 (PCIe Gen4 x4),1 MCIO (PCIe Gen5 x4),2 SlimSAS (PCIe Gen4 x4 / 4 SATA3)
1 USB 3.2 Gen2x2 Type-C (Rear), 2 USB 3.2 Gen2 Type-C (1 Rear, 1 Front), 4 USB 3.2 Gen2 Type-A (Rear), 4 USB 3.2 Gen1 (2 Rear, 2 Front), 4 USB 2.0 (Front)
Marvell 10 GbE LAN, Realtek 2.5 Gigabit LAN
802.11ax WiFi 6E + Bluetooth

Server Grade Ultra Low Loss PCB

The server grade low loss PCB improves signal integrity, allowing motherboard to support PCIe 5.0 for both graphics card and M.2 SSD, it also improves memory OC potential to deliver the most extreme memory performance.

2oz Copper PCB

2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.

12 Layer PCB

The 12 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, ensures a reliable and long-lasting system while delivering ultimate performance without any compromise.

Composite VRM Heatsink

It is equipped with a composite VRM heatsink active cooling fans, XXL aluminum heatsinks and heat pipe for maximum heat dissipation.

DDR5 ECC Memory Support

ASROCK TRX50 WS DIMMs DDR5 RDIMM ECC Memory overclocking with max capacity of 1TB. It can automatically detect and correct data corruption, reducing the chance of system crashes to ensure workstation stability with multiple memory modules.

Specifications of ASROCK TRX50 WS Amd Ryzen 7000 EATX DDR5 STR5 Threadripper Motherboard

Unique Feature	Superb Productivity PCIe Gen5 (Graphics, M.2) Quad Channel DDR5 Rock-Solid Durability Ultra Low-Loss PCB 18+3+3 Power Phase, 110A SPS for VCore Pre-Installed I/O Shield 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) Ultrafast Connectivity 10G LAN, 2.5G LAN, 802.11ax Wi-Fi 6E Module EZ Update BIOS Flashback Button ASRock Auto Driver Installer
CPU	Supports AMD Ryzen Threadripper PRO 7000 and AMD Ryzen Threadripper 7000 Series Processors Supports AMD Socket sTR5 Supports ASRock Hyper BCLK Engine
Chipset	AMD TRX50
Memory	Quad Channel DDR5 Memory Technology 4 x DDR5 DIMM Slots Supports DDR5 ECC, buffered memory (RDIMM/ RDIMM-3DS) up to 7600+(OC) Max. capacity of system memory: 1TB
BIOS	256Mb AMI UEFI Legal BIOS with GUI support
Graphics	N/a
Audio	7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) Impedance Sensing on Rear Out port Individual PCB Layers for R/L Audio Channel Nahimic Audio
LAN	1 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (Marvell AQC113) Support Wake-On-LAN Support PXE 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG) Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control
Wireless LAN	802.11ax Wi-Fi 6E Module Supports IEEE 802.11a/b/g/n/ac/ax Supports Dual-Band 22 with extended 6GHz band support* 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.2 + High speed class II Supports MU-MIMO
Slots	CPU: 3 x PCIe 5.0 x16 Slots (PCIE1/PCIE3 at x16; PCIE4 at x8)* 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode* 1 x PCIe 4.0 x16 Slot (PCIE5), supports x8 mode* Chipset: 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module 15 Gold Contact in VGA PCIe Slots
Storage	CPU: 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 mode* 1 x MCIO PCIe Gen5x4 Connector 2 x SlimSAS SFF-8654 Connectors (PCIe Gen4x4 or 4 x SATA3 6.0 Gb/s) Chipset: 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 mode* 4 x SATA3 6.0 Gb/s Connectors
RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
USB	CPU: 1 x USB 3.2 Gen2x2 Type-C (Rear) 4 x USB 3.2 Gen2 Type-A (Rear) Chipset: 2 x USB 3.2 Gen2 Type-C (1 Rear, 1 Front) 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front) 4 x USB 2.0 (Front)
Connector	2 x Thermistor Cable Headers 1 x SPI TPM Header 1 x COM Port Header 1 x Chassis Intrusion and Speaker Header 2 x Addressable LED Headers* 1 x CPU Fan Connector (4-pin) 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)* 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)** 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) 1 x 3 pin ATX Power Connector* 2 x 8 pin ATX 12V Power Connectors (Hi-Density Power Connector) (for Motherboard)** 2 x 6 pin PCIe 12V Power Connectors (Hi-Density Power Connector) (for Motherboard)** 1 x 6 pin Graphics 12V Power Connector (Hi-Density Power Connector) (for PCIe card)***** 1 x Front Panel Audio Connector (15 Gold Audio Connector) 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s) 1 x Dr. Debug with LED 1 x Power Button with LED 1 x Reset Button with LED
Rear Panel I/O	2 x Antenna Ports 1 x Optical SPDIF Out Port 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) 2 x USB 3.2 Gen1 Type-A Ports 2 x RJ-45 LAN Ports 1 x Clear CMOS Button 1 x BIOS Flashback Button 1 x Line Out Jack (Gold Audio Jack) 1 x Microphone Input Jack (Gold Audio Jack)
Software & UEFI	Software ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC* UEFI ASRock Full HD UEFI ASRock Auto Driver Installer ASRock Instant Flash
Accessories	1 x User Manual 4 x SATA Data Cables 1 x ASRock WiFi 2.4/5/6 GHz Antenna 2 x Thermistor Cables 1 x Multi PSU Adaptor Cable 2 x Screws for M.2 Sockets 2 x Standoffs for M.2 Sockets
Form Factor	EATX Form Factor: 12.0-in x 10.9-in, 30.5 cm x 27.7cm 12 Layer PCB 2oz Copper PCB
OS	Microsoft Windows 11 64-bit
Certifications	FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required)
Warranty	3 Years
Note**	**Prices, Specifications & Features are subject to change without notice
