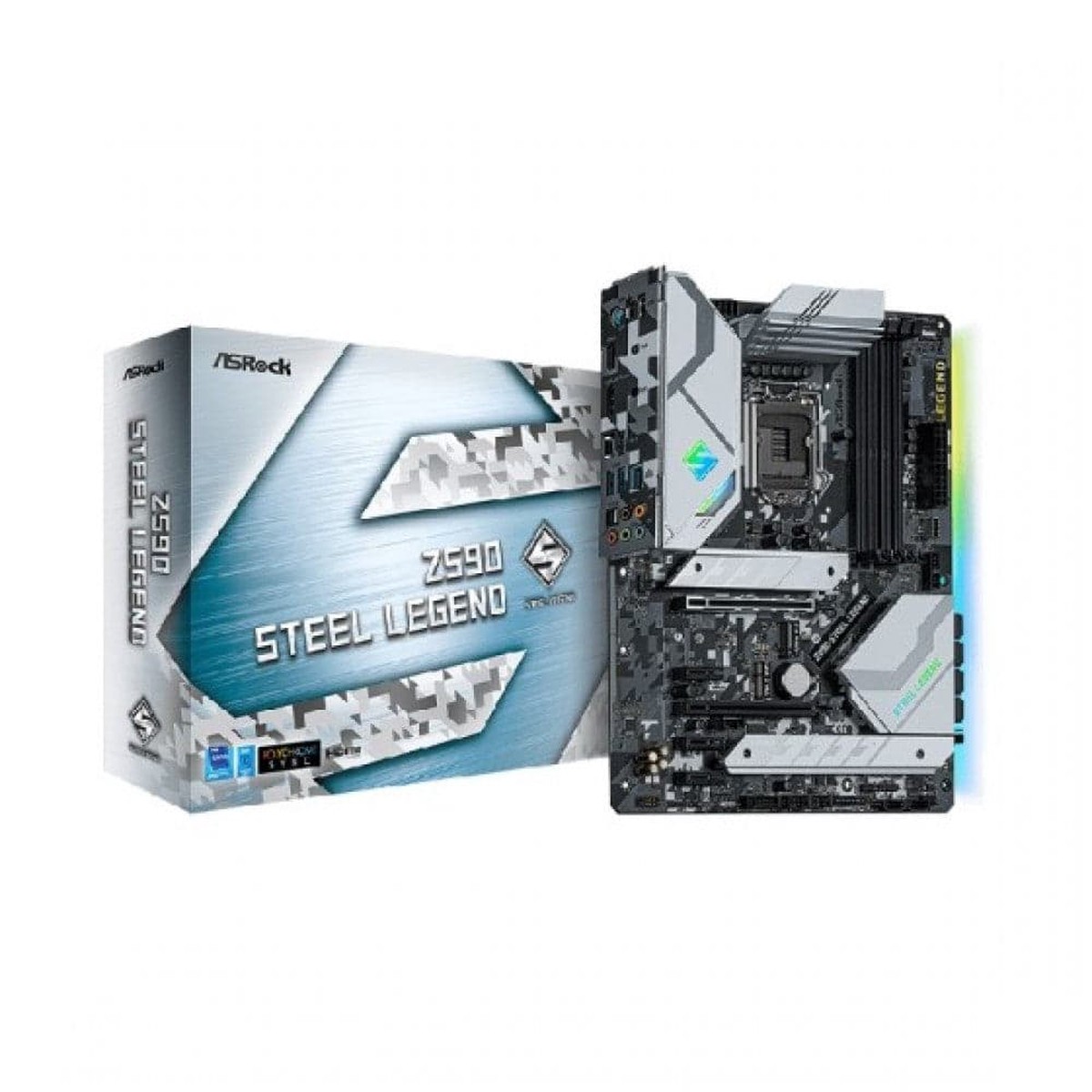

Name: ASROCK Z590 Steel Legend DDR4 Intel Motherboard
SKU: LZ8481877073
Availability: InStock

Description
Reviews (0)

Feature of ASROCK Z590 Steel Legend DDR4 Intel Motherboard

Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors
14 Phase Dr.MOS Power Design
Supports DDR4 4800MHz (OC)
1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 3 x PCIe 3.0 x1, 1 x M.2 Key-E for WiFi
Graphics Output Options: HDMI, DisplayPort
7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
6 SATA3, 1 x Hyper M.2 (PCIe Gen4 x4)
2 x Ultra M.2 (PCIe Gen3 x4 & SATA3)
1 x USB 3.2 Gen2x2 Front Type-C (20Gb/s)
Rear USB 3.2 Gen2 Type A+C (10Gb/s)
6 x USB 3.2 Gen1 (2 x Rear, 4 x Front)
6 x USB 2.0 (2 x Rear, 4 x Front)
Dragon 2.5 Gigabit LAN
ASRock Graphics Card Holder (Patent Pending)

14 Power Phase Design

Designed with a 14 Power Phase design, this motherboard features sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

Clever Access Memory

Conventional PC systems processors can only access a fraction of graphics memory and limits system performance. With Clever Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck and increases performance.

PCIe 4.0 High Speed M.2 Solution

ASROCK Z590 Steel Legend is capable of accommodating multiple M.2 storage devices, one of which can even support next generation PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

ASRock Graphics Card Holder

Install your heavy graphics card on the holder; connect it to your motherboard and chassis with screws. Flexibly slide up and down to perfectly adjust the height required for your graphics card in place.

Dragon 2.5 Gb/s LAN

The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, youll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

Water Pump Header

This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. Users also can adjust the voltage of the water pump to get higher cooling performance with lower noise.

Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboards components from being damaged by these unexpected voltage spikes.

Specifications of ASROCK Z590 Steel Legend DDR4 Intel Motherboard

Unique Feature	ASRock USB 3.2 Gen2 – ASRock Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) – ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) – ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s) ASRock Super Alloy – XXL Aluminum Alloy Heatsink – Premium Power Choke – 50A Dr.MOS – Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) – I/O Armor – Shaped PCB Design – Matte Black PCB – High Density Glass Fabric PCB – 2oz Copper PCB 2.5G LAN ASRock Steel Slot ASRock Full Coverage M.2 Heatsink ASRock Hyper M.2 (PCIe Gen4x4) ASRock Ultra USB Power ASRock POST Status Checker (PSC) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop
CPU	– Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors (LGA1200) – Digi Power design – 14 Power Phase design – Supports Intel Turbo Boost Max 3.0 Technology – Supports Intel K-Series unlocked CPUs
Chipset	– Intel Z590
MEMORY	– Dual Channel DDR4 Memory Technology – 4 x DDR4 DIMM Slots – 11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)* – 10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4666+(OC)* – Supports ECC UDIMM memory modules (operate in non-ECC mode) – Max. capacity of system memory: 128GB** – Supports Intel Extreme Memory Profile (XMP) 2.0 – 15 Gold Contact in DIMM Slots11th Gen Intel Core (i9/i7/i5) support DDR4 3200 natively; Core (i3), Pentium and Celeron support DDR4 2666 natively. 10th Gen Intel Core (i9/i7) support DDR4 2933 natively; Core (i5/i3), Pentium and Celeron support DDR4 2666 natively.*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS	– 128Mb AMI UEFI Legal BIOS with multilingual GUI support – ACPI 6.0 Compliant wake up events – SMBIOS 2.7 Support – CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, VPPM, VCCIN AUX, VCCST Voltage Multi-adjustment
Graphics	– 11th Gen Intel Core Processors support Intel Xe Graphics Architecture (Gen 12). 10th Gen Intel Core Processors support Gen 9 Graphics – Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers – Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz – Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096×2304) @ 60Hz – Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required) – Supports HDCP 2.3 with HDMI 2.0 and DisplayPort 1.4 Ports*Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. 11th Gen Intel Core Processors support HDMI 2.0. 10th Gen Intel Core Processors support HDMI 1.4.
Audio	– 7.1 CH HD Audio (Realtek ALC897 Audio Codec) – Supports Surge Protection – Gold Audio Jacks – 15 Gold Audio Connector – Nahimic Audio
LAN	– 2.5 Gigabit LAN 10/100/1000/2500 Mb/s – Dragon RTL8125BG – Supports Dragon 2.5G LAN Software – Smart Auto Adjust Bandwidth Control – Visual User Friendly UI – Visual Network Usage Statistics – Optimized Default Setting for Game, Browser, and Streaming Modes – User Customized Priority Control – Supports Wake-On-LAN – Supports Lightning/ESD Protection – Supports Energy Efficient Ethernet 802.3az – Supports PXE
Slots	11th Gen Intel Core Processors – 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x4 (PCIE3))* 10th Gen Intel Core Processors – 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen3x16 (PCIE1); dual at Gen3x16 (PCIE1) / Gen3x4 (PCIE3))- 3 x PCI Express 3.0 x1 Slots – Supports AMD Quad CrossFireX and CrossFireX – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT) – 15 Gold Contact in VGA PCIe Slot (PCIE1)Supports NVMe SSD as boot disks
Storage	– 6 x SATA3 6.0 Gb/s Connectors* – 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Socket M2_1 works with 11th Gen Intel Core processors only) – 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) – 1 x Ultra M.2 Socket (M2_3), supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*If M2_2 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled. If M2_3 is occupied by a SATA-type M.2 device, SATA3_5 will be disabled.Supports Intel Optane Technology Supports NVMe SSD as boot disks Supports ASRock U.2 Kit
RAID	– Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices – Supports RAID 0 and RAID 1 for M.2 NVMe storage devices**RAID function for PCIe mode SSD in M2_1 is only available with Intel SSD installed.
Connector	– 1 x SPI TPM Header – 1 x Power LED and Speaker Header – 2 x RGB LED Headers* – 2 x Addressable LED Headers – 1 x CPU Fan Connector (4-pin)* – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** – 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** – 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) – 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) – 1 x Front Panel Audio Connector (15 Gold Audio Connector) – 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) – 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)Support in total up to 12V/3A, 36W LED StripSupport in total up to 5V/3A, 15W LED StripThe CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.***The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP, CHA_FAN4/WP and CHA_FAN5/WP can auto detect if 3-pin or 4-pin fan is in use.
Rear Panel I/O	– 2 x Antenna Mounting Points – 1 x PS/2 Mouse/Keyboard Port – 1 x HDMI Port – 1 x DisplayPort 1.4 – 1 x Optical SPDIF Out Port – 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)* – 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)* – 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)- 2 x USB 2.0 Ports (Supports ESD Protection) – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) – HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)Ultra USB Power is supported on USB3_12 ports. ACPI wake-up function is not supported on USB3_12 ports.
Software and UEFI	Software – ASRock Motherboard Utility (A-Tuning) – ASRock Dragon 2.5G LAN Software – ASRock Polychrome SYNC* UEFI – ASRock EZ Mode – ASRock Full HD UEFI – ASRock My Favorites in UEFI – ASRock Instant Flash – ASRock Internet Flash – ASRock Easy RAID Installer*These utilities can be downloaded from ASRock Live Update & APP Shop.
Support CD	– Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Accessories	– Quick Installation Guide, Support CD – 2 x SATA Data Cables – 4 x Screws for M.2 Sockets – 2 x Standoffs for M.2 Sockets – 1 x Graphics Card Holder
Hardware Monitor	– Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans – Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans – Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans – Voltage monitoring: CPU Vcore, PCH, DRAM, VCCIO, VPPM, VCCSA, CPU PLL, +12V, +5V, +3.3V
Form Factor	– ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm – 2oz Copper PCB
OS	– Microsoft Windows 10 64-bit
Certifications	– FCC, CE – ErP/EuP ready (ErP/EuP ready power supply is required)
Warranty	3 Years
Note*	Price, feature and specifications are subject to change without notice.
