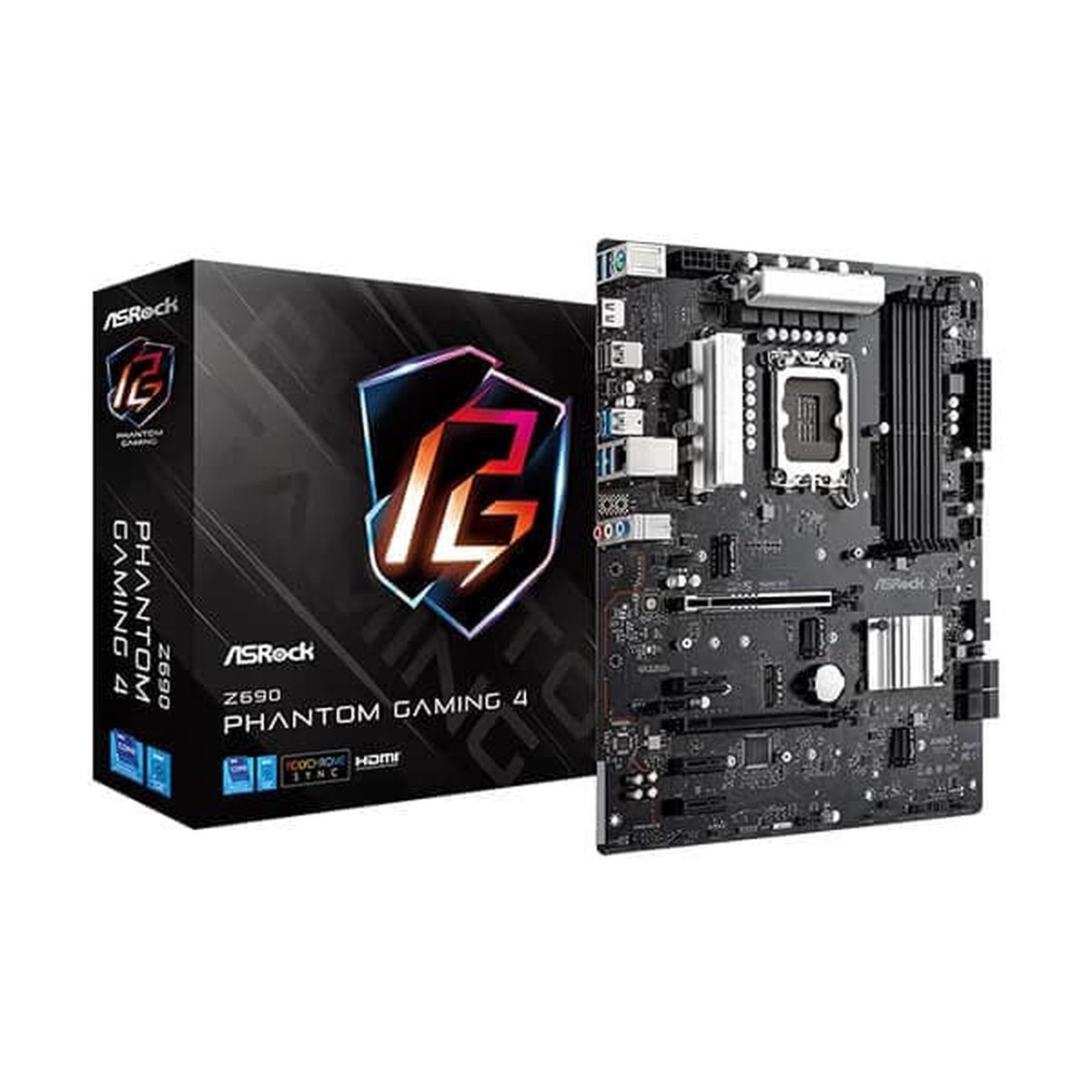

Name: ASROCK Z690 Phantom Gaming 4 DDR4 Intel Motherbaord
SKU: LZ8481875425
Availability: InStock

Description
Reviews (0)

Feature of ASRock Z690 Phantom Gaming 4 DDR4

Supports 12th Gen Intel Core Processors (LGA1700)
9 Phase Dr.MOS Power Design
Supports DDR4 5000MHz (OC)
1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 3 PCIe 3.0 x1
1 M.2 Key-E for WiFi
Graphics Output Options: HDMI
Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
4 SATA3
2 Hyper M.2 (PCIe Gen4 x4)
1 Hyper M.2 (PCIe Gen4 x4 & SATA3)
1 USB 3.2 Gen2x2 Front Type-C
2 USB 3.2 Gen2 (Rear Type A+C)
8 USB 3.2 Gen1 (4 Rear, 4 Front)
Intel Gigabit LAN

Surface Mount Tech + PCIe 5.0

The SMT-type PCIe slot improves signal flow and maximizes signal stability cinder high speed compared to the DIP-style PCIe slot. Also, this SMT-type PCIe slot is capable of supporting the lightning speed of PCIe 5.0.
The latest PCI Express 5.0 has an incredible bandwidth of 128GBps to offer you a full potential high-end graphics card.

Nahimic Audio

A. Audio That Matters

Enjoy the most engaging listening experience with vibrant and rich details with Nahimic Audio. Whether you are listening through any interior, exterior speaker or headphones and headset using WiFi, HDMI, or analog output Nahimic Audio will offer you the best.

B. Enhance Communication Quality

Enhance the communication quality with Nahimic Audio. The Powerful algorithms of this audio maximize noise-free conversation. It gives a constant voice level even from a distance from your mic. This audio engine dynamically clears the sound and eliminates interference noise as well as lowers the voice variation. This results in a better understanding and less fatigue.

C. Ultimate Gaming Experience

Sound Tracker The Sound Tracker is a visual indicator for pointing out the directions from where dominant sounds are coming. Each sound is properly positioned at a 360 angle on the radar for better engagement during the game.
Works on any device! Experience the vibrant and high-quality sound on all your favorite audio devices. Whether its Jack, USB, Bluetooth, HDMI, or S/PDIF Nahimic is compatible with all of your favorite audio devices. This feature ensures the best sound with every audio device. Nahimic Audio system measures and improve to enhance our technology to provide you with the best experience.

3. High-Speed M.2 Solution

This Phantom Gaming 4 ATX motherboard can accommodate multiple M.2 storage devices. One of the M.2 ports can support a PCI Express 4.0 M.2 SSD. This enables it to perform twice as fast as the previous 3rd generation. It eventually provides a lightning-fast data transfer experience.

4. POLYCHROME RGB

This ASROCK Z690 Phantom Gaming 4 motherboard features onboard RGB and an ARGB header. You can also synchronize RGB LED devices covering the Polychrome RGB Sync-certified accessories.

5. Front USB 3.2 Gen2x2 Type-C

The latest USB 3.2 Gen2x2 Type-C ports offer up to 20 Gbps data transmission rate. This data transmission rate is 2x as faster as any previous generation. This 2x faster data transfer rate of the USB ports provides a fast data transfer interface along with a reversible USB Type-C design. This reversible design helps to fit the connector either way.

6. BIOS Flashback

Enjoy the most suitable BIOS flashing with just a simple tap. You can easily acquire the latest BIOS support only with a USB and power supply. No CPU, RAM, or other hardware components are required.

7. M.2 (KEY E) For WiFi

Along with the onboard LAN port, you can also choose wireless connections by M.2 (Key E) slot.

Specifications of ASRock Z690 Phantom Gaming 4 DDR4

Unique Feature	ASRock USB 3.2 Gen2 – ASRock Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) – ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) – ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s) ASRock Super Alloy – Premium Power Choke – 50A Dr.MOS Sapphire Black PCB – High Density Glass Fabric PCB ASRock Steel Slot ASRock Hyper M.2 (PCIe Gen4x4) ASRock POST Status Checker (PSC) ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
CPU	– Supports 12th Gen Intel Core Processors (LGA1700) – 9 Power Phase design – Supports Intel Hybrid Technology – Supports Intel Turbo Boost Max 3.0 Technology
Chipset	– Intel Z690
Memory	– Dual Channel DDR4 Memory Technology – 4 x DDR4 DIMM Slots – Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)* – Supports ECC UDIMM memory modules (operate in non-ECC mode) – Max. capacity of system memory: 128GB – Supports Intel Extreme Memory Profile (XMP) 2.0 *Supports DDR4 3200 natively.
BIOS	– 128Mb AMI UEFI Legal BIOS with multilingual GUI support – ACPI 6.0 Compliant wake up events – SMBIOS 2.7 Support – CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment
Graphics	– Intel Xe Graphics Architecture (Gen 12) – Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096×2160) @ 60Hz – Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible Port *Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Audio	– 7.1 CH HD Audio (Realtek ALC897 Audio Codec) – Supports Surge Protection – Nahimic Audio LAN – Gigabit LAN 10/100/1000 Mb/
LAN	– Gigabit LAN 10/100/1000 Mb/s – Giga PHY Intel I219V – Supports Wake-On-LAN – Supports Lightning/ESD Protection – Supports Energy Efficient Ethernet 802.3az – Supports UEFI PXE
Slots	CPU: – 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: – 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* – 3 x PCIe 3.0 x1 Slots (PCIE2, PCIE4 and PCIE5)* – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT) – Supports AMD CrossFire *Supports NVMe SSD as boot disks
Storage	CPU: – 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* – 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280/22110 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes* – 4 x SATA3 6.0 Gb/s Connectors *Supports Intel Optane Technology (M2_2 and M2_3 only) Supports Intel Volume Management Device (VMD) Supports NVMe SSD as boot disks Supports ASRock U.2 Kit
RAID	– Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices – Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
Connector	– 1 x SPI TPM Header – 1 x Power LED and Speaker Header – 1 x RGB LED Header* – 3 x Addressable LED Headers – 1 x CPU Fan Connector (4-pin)* – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** – 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** – 1 x 24 pin ATX Power Connector – 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) – 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) – 1 x Front Panel Audio Connector – 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) – 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) – 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection) Supports in total up to 12V/3A, 36W LED Strip Support in total up to 5V/3A, 15W LED Strip The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. ***The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.
Rear Panel I/O	– 3 x Antenna Mounting Points – 1 x PS/2 Mouse/Keyboard Port – 1 x HDMI Port – 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection) – 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection) – 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) – 2 x USB 2.0 Ports (Supports ESD Protection) – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) – 1 x BIOS Flashback Button – HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI	Software – ASRock Motherboard Utility (Phantom Gaming Tuning) – ASRock Polychrome SYNC – ASRock XFast LAN UEFI – ASRock EZ Mode – ASRock Full HD UEFI – ASRock My Favorites in UEFI – ASRock Instant Flash – ASRock Internet Flash – ASRock Easy RAID Installer
Support CD	– Drivers, Utilities, AntiVirus Software (Trial Version)
Accessories	– Quick Installation Guide, Support CD, I/O Shield – 2 x SATA Data Cables – 4 x Screws for M.2 Sockets
Hardware Monitor	– Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans – Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans – Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans – Voltage monitoring: CPU Vcore, PCH, DRAM, VCCIN AUX, VCCSA, +1.05V PROC, +1.8V PROC, +0.82V PCH, +12V, +5V, +3.3V
Form Factor	– ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm – Solid Capacitor design
OS	– Microsoft Windows 10 64-bit / 11 64-bit
Certifications	– FCC, CE – ErP/EuP ready (ErP/EuP ready power supply is required)
	– FCC, CE – ErP/EuP ready (ErP/EuP ready power supply is required)
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.
