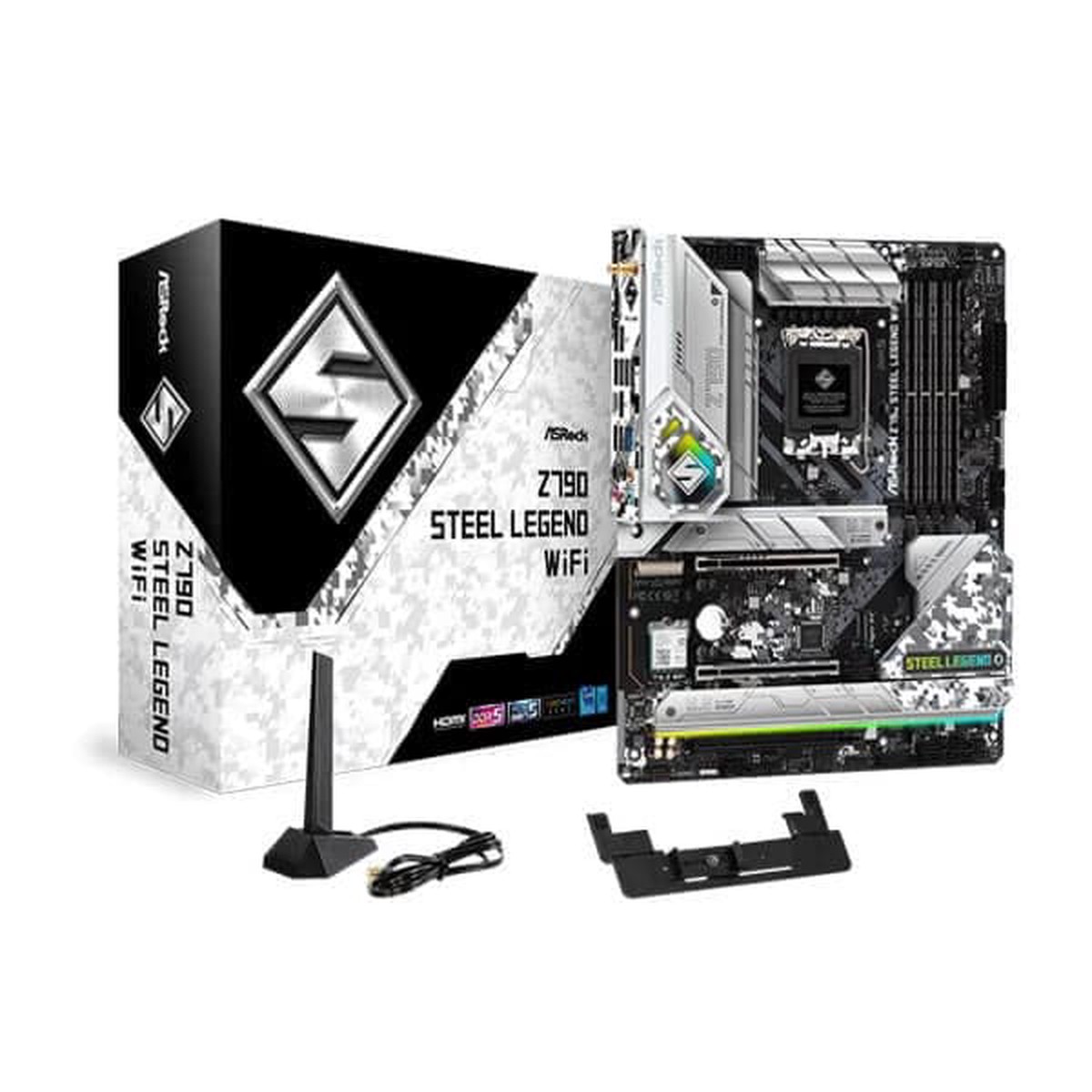

Name: ASROCK Z790 Steel Legend Wifi DDR5 Intel Motherboard
SKU: LZ8481875450
Availability: InStock

Description
Reviews (0)

Feature of ASROCK Z790 Steel Legend Wifi DDR5 Intel Motherboard

Supports 13th Gen & 12th Gen Intel Core Processors
16+1+1 Phase Power Design, SPS for VCore+GT
4 x DDR5 DIMMs, supports up to 6800+(OC)
1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 M.2 Key-E for WiFi
Graphics Output Options: 1 HDMI, 1 DisplayPort, eDP
7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
1 Blazing M.2 (PCIe Gen5x4), 4 Hyper M.2 (PCIe Gen4x4), 8 SATA3
1 USB 3.2 Gen2x2 Type-C (Front), 1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 12 USB 3.2 Gen1 (8 Rear, 4 Front), 3 USB 2.0 (3 Front)
Realtek 2.5G LAN
802.11ax Wi-Fi 6E + Bluetooth

SPS (Smart Power Stage)

Dr.MOS design features the latest SPS (Smart Power Stage) technology. Asrock Z790 Steel Legend WiFi DDR5is optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.

16+1+1 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

6 Layer PCB

The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, ensures a reliable and long-lasting system while delivering ultimate performance without any compromise.

2oz Copper PCB

2 ounce copper inner-800 layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.

DDR5 XMP & EXPO Support

Derived from the built for stable and reliable designing concept, ASRock does not compromise on any details. ASRock Z790 Steel Legend WiFi DDR5 motherboards is built with low-loss materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance up to 6800MHz and beyond by enabling the pre-tested profiles. Make sure the memory modules are Intel XMP/AMD EXPO capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

Reinforced DIMM Slot

The reinforced DIMM slot is surfaced mounted onto the motherboard to give better physical strength as well as a more stable memory signal, with this superior revolutionary design, it is able to dramatically overclock DRAM module up to insane frequency.

DIY Friendly Design

Due to the unique electrical architecture of DDR5 DIMM, theres a high risk of damaging the memory module if AC power isnt disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every ASRock Z790 Steel Legend WiFi DDR5 motherboard, lowers the risk of damaging your memory module.

PCIe 5.0 + Surface-Mount Tech

Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.

Audio That Matters

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

Enhance Communication Quality

The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.
Static Noise Suppression
Echo Cancellation
Lateral Sound Cancellation
Voice Stabilizer

Ultimate Gaming Experience

Sound Tracker
The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360 on a radar for a full immersion during the game.

Works on any devices!
Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.

PCIe Gen5 Blazing M.2

The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128GB/s transfer speed, ASRock Z790 Steel Legend WiFi DDR5 is ready to unleash the full potential of future ultrafast SSDs.

XXL M.2 Heatsink

The extra large aluminum alloy M.2 heatsink effectively improves heat dissipation to keep those high speed M.2 SSDs as cool as possible, ASRock Z790 Steel Legend WiFi DDR5 is able to give better stability while maintaining top performance.

Anti-Drop Screw

Tired of dropping screws or screws missing inside chassis?
The enhanced M.2 heatsink with anti-drop screw design that make sure installation process more easily.

ASRock Graphics Card Holder

Install your heavy graphics card on the holder; connect it to your ASRock Z790 Steel Legend WiFi DDR5 motherboard and chassis with screws. Flexibly slide up and down to perfectly adjust the height required for your graphics card in place.

POLYCHROME RGB

In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

Dragon 2.5 Gb/s LAN

The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, youll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups in ASRock Z790 Steel Legend WiFi DDR5.

Wi-Fi 6E 802.11ax

WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.

M.2 Key-E Module Cap

SMA cable is easy to loose, this is an unacceptable situation for every users. Now we fixed this issue with a little Key-E module cap.

Front USB 3.2 Gen2x2 Type-C

ASRock Z790 Steel Legend WiFi DDR5 has latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.

Supports ASRock 13.3 Side Panel kit

An eDP signal connector is built with ASRock Z790 Steel Legend WiFi DDR5 selected motherboards and supports two functions simultaneously power and transmission of digital display signal. The connector reserves the room for upgrading with ASRocks exclusive 13.3 Side Panel Kit.. The ideal 13.3 Side Panel size will be perfectly matched standard form factor chassis and users can easily build a LCD display inside the PC, adding a sub-screen for monitoring PC status, or watching videos, doing streaming or working personalized tasks. This whole new concept of customization enables new possibilities for personalizing designs doubles productivity or entertainment.

Auto Driver Installer

Optical drive or driver DVD is no longer needed! ASRock Z790 Steel Legend WiFi DDR5 motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically!
Step1: Install Auto Driver Installer
Step2: ADI will automatically download and install all necessary drivers.
Step3: Done!

Flexible Integrated IO Shield

Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue.

Specifications of ASROCK Z790 Steel Legend Wifi DDR5 Intel Motherboard

Model	Z790 Steel Legend WiFi
Unique Feature	Superb Productivity – PCIe Gen5 (Graphics, M.2) – Dual Channel DDR5 Rock-Solid Durability – 16+1+1 Power Phase, 60A SPS for VCore+GT – Flexible Integrated I/O Shield – Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) Ultrafast Connectivity – 2.5G LAN, 802.11ax Wi-Fi 6E Module EZ Update – ASRock Auto Driver Installer EZ Troubleshooter
CPU	– Supports 13th Gen & 12th Gen Intel Core Processors (LGA1700) – Supports Intel Hybrid Technology – Supports Intel Turbo Boost Max 3.0 Technology – Supports Intel Thermal Velocity Boost (TVB) – Supports Intel Adaptive Boost Technology (ABT)
Chipset	– Intel Z790
Memory	– Dual Channel DDR5 Memory Technology – 4 x DDR5 DIMM Slots – Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC) – Max. capacity of system memory: 128GB – Supports Intel Extreme Memory Profile (XMP) 3.0
BIOS	– 256Mb AMI UEFI Legal BIOS with GUI support
Graphics	– Intel Xe Graphics Architecture (Gen 12) – 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz – 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz – 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Audio	– 7.1 CH HD Audio (Realtek ALC897 Audio Codec) – Nahimic Audio
LAN	– 2.5 Gigabit LAN 10/100/1000/2500 Mb/s – Dragon RTL8125BG – Supports Dragon 2.5G LAN Software – Smart Auto Adjust Bandwidth Control – Visual User Friendly UI – Visual Network Usage Statistics – Optimized Default Setting for Game, Browser, and Streaming Modes – User Customized Priority Control
Wireless LAN	– 802.11ax Wi-Fi 6E Module – Supports IEEE 802.11a/b/g/n/ac/ax – Supports Dual-Band 2×2 with extended 6GHz band support* – 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology – Supports Bluetooth + High speed class II – Supports MU-MIMO
Slots	CPU: – 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* – 1 x Blazing M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: – 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* – 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* – 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* – 8 x SATA3 6.0 Gb/s Connectors
RAID	– Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices – Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
USB	– 1 x USB 3.2 Gen2x2 Type-C (Front) – 1 x USB 3.2 Gen2 Type-C (Rear) – 1 x USB 3.2 Gen2 Type-A (Rear) – 12 x USB 3.2 Gen1 (8 Rear, 4 Front) – 3 x USB 2.0 (3 Front)
Connector	– 1 x eDP Signal Connector – 1 x SPI TPM Header – 1 x Power LED and Speaker Header – 1 x RGB LED Header* – 3 x Addressable LED Headers – 1 x CPU Fan Connector (4-pin)* – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** – 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** – 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) – 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) – 1 x Front Panel Audio Connector (15 Gold Audio Connector) – 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) – 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) – 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
Rear Panel I/O	– 2 x Antenna Ports – 1 x HDMI Port – 1 x DisplayPort 1.4 – 1 x Optical SPDIF Out Port – 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) – 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) – 8 x USB 3.2 Gen1 Ports – 1 x RJ-45 LAN Port – HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
Software and UEFI	Software – ASRock Motherboard Utility (A-Tuning) – ASRock Dragon 2.5G LAN Software – ASRock Polychrome SYNC* UEFI – ASRock EZ Mode – ASRock Full HD UEFI – ASRock My Favorites in UEFI – ASRock Auto Driver Installer – ASRock Instant Flash – ASRock Easy RAID Installer
Accessories	– 1 x User Manual – 2 x SATA Data Cables – 1 x ASRock WiFi 2.4/5/6 GHz Antenna – 4 x Screws for M.2 Sockets – 1 x Graphics Card Holder
Form Factor	– ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm – 2oz Copper PCB
OS	– Microsoft Windows 10 64-bit / 11 64-bit
Certifications	– FCC, CE – ErP/EuP ready (ErP/EuP ready power supply is required) – CEC Tier II ready
Warranty	3 Years
Note	***Features, Price and Specifications are subject to change without notice.
