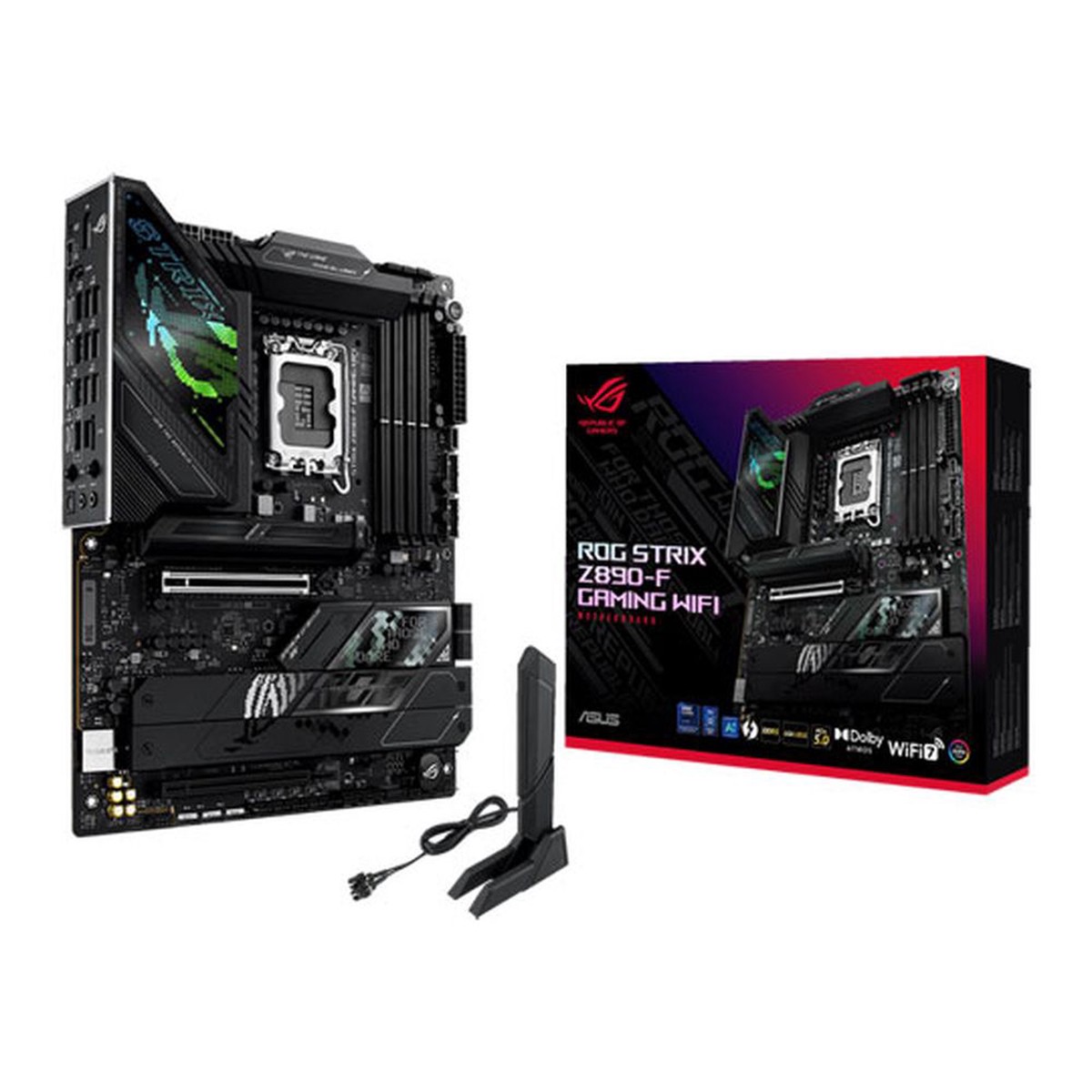

Name: ASUS ROG STRIX Z890-F Gaming Wifi DDR5 Intel Motherboard
SKU: LZ8481869070
Availability: InStock

Description
Reviews (0)

Feature of ASUS ROG STRIX Z890-F Gaming Wifi DDR5 Intel Motherboard

ASUS AI ADVISOR

Using AI technology to understandnatural-language questions or scenario descriptions, ASUS ROG STRIX Z890-F Gaming WifiAI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.

Ai OVERCLOCKING

ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits.

AI NETWORKING II

AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.

NPU BOOST

The integrated NPU in Intel Core Ultra Processors (Series 2) efficiently accelerates AI workflows and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.

DDR5 DOMINATION

Enhanced signal routing can push enthusiast-grade kits well beyond the 8 GT/s threshold on the Strix Z890-F.

AEMP III

ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edgeCUDIMM memory.

Specifications of ASUS ROG STRIX Z890-F Gaming Wifi DDR5 Intel Motherboard

Core Specifications
Edition	ROG STRIX Z890-F GAMING WIFI
Form Factor	ATX
CPU Socket	1851
Chipset	Intel Z890
RAM Memory Support
Memory Type	DDR5
Memory Channel	Dual (2)
Memory Type (ECC)	Non-ECC
Memory Type (R/U)	UDIMM (Unbuffered)
Memory Speed (Mhz)	DDR5 – 8600(OC)
Max. Memory Capacity	192GB (4x48GB)
Audio
Audio	7.1 Channel HD Audio
Graphics Support
Primary GPU Interface	PCIe 5.0 (x16)
NVIDIA SLI Support	N/A
AMD CrossFire Support	N/A
Integrated Graphics	Discrete GPU Required for Graphics Output
On-Board Graphics Connectors	DisplayPort HDMI Thunderbolt 4
Internal Connectivity
Expansion Slots	1 x M.2, 22-42/60/80, PCIe Gen4x4/SATA 1 x M.2, 22-42/60/80/110, PCIe Gen5x4 2 x M.2, 22-80, PCIe Gen4x4 1 x M.2, 22-80/110, PCIe Gen4x4 1 x PCIe 4.0 x16 (x4 Bandwidth) 1 x PCIe 5.0 x16 4 x SATA 6GB/s
SATA Support	SATA3
RAID Support via	SATA3 / M.2
Storage Mode Support	RAID 0 RAID 1 RAID 10 RAID 5
Internal I/O	1 x 24-pin (Power) 1 x 4-pin AIO_PUMP Connector 5 x 4-pin CHA_FAN connector 1 x 4-pin CPU Fan Connector 1 x 4-pin CPU OPT Fan Connector 2 x 8-pin (Power) 3 x Addressable Gen 2 Header 1 x Chassis Intrusion connector 1 x CPU_OV 1 x Front Panel Audio Header 1 x Front Panel Connector 5 x M.2 Connector 4 x SATA III – 6Gb/s 1 x T_Sensor Connector 1 x Thunderbolt 4 Header 2 x USB 2.0 Header 2 x USB 3.2 Gen1 Header 1 x USB 3.2 Gen2x2 Connector
External Connectivity
Network Interface Type	802.11be Wi-Fi 7 LAN Wired 2.5 Gigabit LAN
Network Chip/Modules	1 x 2.5 Gigabit LAN 1 x 802.11be WiFi 7 + BT5.4
Rear I/O Connectors	1 x BIOS Flashback Button 1 x Clear CMOS Button 1 x DisplayPort 1 x HDMI 1 x Line Out 1 x Mic-In 1 x RJ-45 1 x S/PDIF-Out (Optical) 2 x Thunderbolt 4 2 x USB 2.0 4 x USB 3.2 Gen1 Type-A 4 x USB 3.2 Gen2 Type-A 1 x USB 3.2 Gen2 Type-C 1 x USB 3.2 Gen2 Type-C /w PD 1 x WiFi Module
Additional Specifications
Water Cooled	No
Cooling	Passive Heatsinks
QPI Speed	N/A
Board Dimensions	305 x 244 mm
