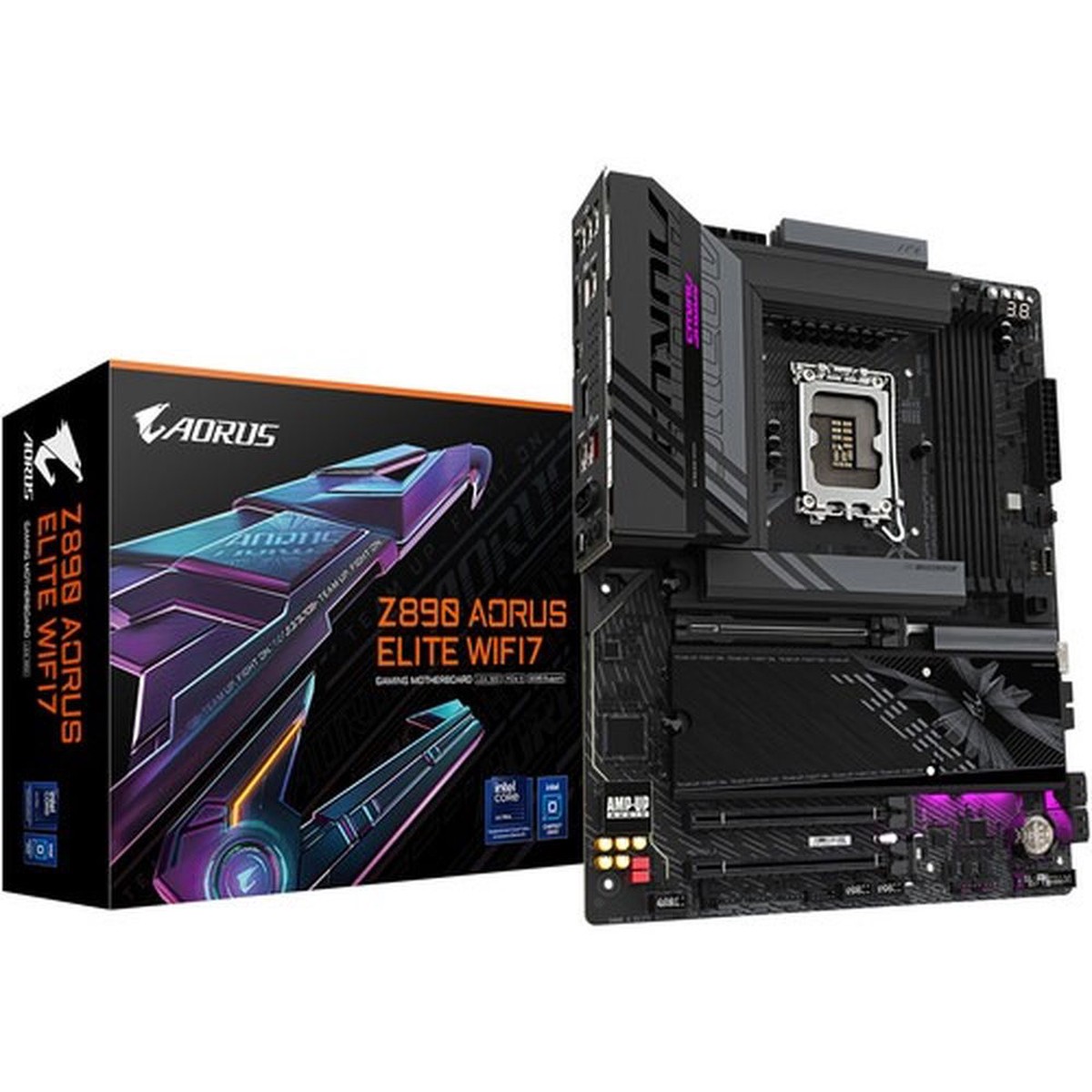

Name: GIGABYTE Z890 AORUS Elite Wifi 7 DDR5 Intel Motherboard
SKU: LZ8481869063
Availability: InStock

Description
Reviews (0)

Feature of GIGABYTE Z890 AORUS Elite Wifi 7 DDR5 Intel Motherboard

Gigabyte Supports Intel Core Ultra processors (Series 2)
Digital twin 16+1+2 phases VRM solution
D5 Bionic Corsa for Infinite Memory Performance
AI Perfdrive: Provides optimal and customized BIOS preset profile for users
Premium Compatibility: 4*DDR5 with XMP Memory Module Support
WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
EZ-Latch Click: M.2 heatsinks with screwless design
Sensor Panel Link: Onboard video port for hassle-free in-chassis panel setup
Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
NewPower Monitorin HWinfo for real-time monitoring on CPU power phases
Ultra-Fast Storage: 4*M.2 slots, including 1* PCIe 5.0 x4
Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard L
Fast Networking: 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
Extended Connectivity: THUNDERBOLT 4 Type-C with DP-Alt, DisplayPort
High-Res Audio: ALC1220 & WIMA Audiophile Grade Capacitors
Ultra Durable PCIe Armor: The metal back plate of PCIe x16 slot for enhanced durability
PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card

AORUS AI SNATCH

Unleash optimal performance with one-click activation. With just a single click, unleash the full potential of DDR5 memory, instantly boosting performance for gaming and creative content. Get enhanced computing power, fast AI performance, EZ to Peak, safe overclocking, and less power usage.

Wi-Fi 7

Wi-Fi 7 introduces support for expansive 320/160 MHz channels, dramatically increasing bandwidth for fast data transfer speeds. Leveraging 4K-QAM technology, Wi-Fi 7 elevates data throughput, enabling fast file transfers and buffer-free streaming.

Wi-Fi 7s MLO (Multi-Link Operation) technology allows strategic bandwidth allocation dedicating 2.4 GHz for streaming and 5/6 GHz for gaming, resulting in an interruption-free network experience.

With low latency, Wi-Fi 7 minimizes delays, making it the ideal choice for time-sensitive applications, such as video conferencing and competitive online gaming.

2.5GbE LAN

Supercharge your online gaming with the 2.5GbE RJ45 LAN jack. With fast speeds, minimal lag, and optimal performance, youll be able to elevate your gaming rig for online competition.

EZ-Latch Designs

PCIe EZ-Latch Plus

Easy ejection with a single slick for graphics cards

M.2 EZ-Latch Click

Tool-less installation for M.2 heat sink

M.2 EZ-Latch Plus

Tool-less installation for M.2 SSDs

Additional Key Features

Supports Intel Core Ultra processors (Series 2)

Digital twin 16+1+2 phases VRM solution

D5 Bionic Corsa for infinite memory performance

Specifications of GIGABYTE Z890 AORUS Elite Wifi 7 DDR5 Intel Motherboard

CPU	LGA1851 socket: Support for Intel Core Ultra Processors L3 cache varies with CPU
Chipset	Intel Z890 Express Chipset
Memory	Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Support CUDIMM memory module
Onboard Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x Intel Thunderbolt 4 connector (USB4 USB Type-C port), supporting DisplayPort and Thunderbolt video outputs When a Thunderbolt monitor is installed, the maximum resolution supported is 51202880@60 Hz with 24 bpp (single display output). When a USB4 USB Type-C monitor is installed, the maximum resolution supported is 38402160@240 Hz (single display output). * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, Back Panel Connectors, for more information.) * Support for DisplayPort 2.1 version and HDCP 2.3- 1 x front HDMI port, supporting a maximum resolution of 19201080@30 Hz * Support for HDMI 1.4 version 1 x DisplayPort, supporting a maximum resolution of 40962304@60 Hz * Support for DisplayPort 2.1 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time
Audio	Realtek ALC1220 CODEC * The back panel line out jack supports DSD audio.High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
LAN	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication Module	MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.4 Support for 11be 160MHz wireless standard Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.1) 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.4 Support for 11be 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) ** Wi-Fi 7 channels on 6 GHz band availability depends on individual countrys regulations.
Expansion Slots	CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset: 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)
Storage Interface	CPU: 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB	CPU: 1 x Intel Thunderbolt 4 (USB Type-C) ports on the back panel Support up to 40Gbps with Thunderbolt devices Support up to 20Gbps with USB4 devices *Support up to 10Gbps with USB 3.2 devicesChipset: 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x power button 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper(Note) Actual support may vary by CPU.
Back Panel Connectors	1 x Intel Thunderbolt 4 connectors (USB Type-C ports) 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x antenna connectors (2T2R) 1 x DisplayPort (Note) 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks(Note) Actual support may vary by CPU.
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Bundle Software	Norton Internet Security (OEM version) LAN bandwidth management software
Operating System	Support for Windows 11 64-bit
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
