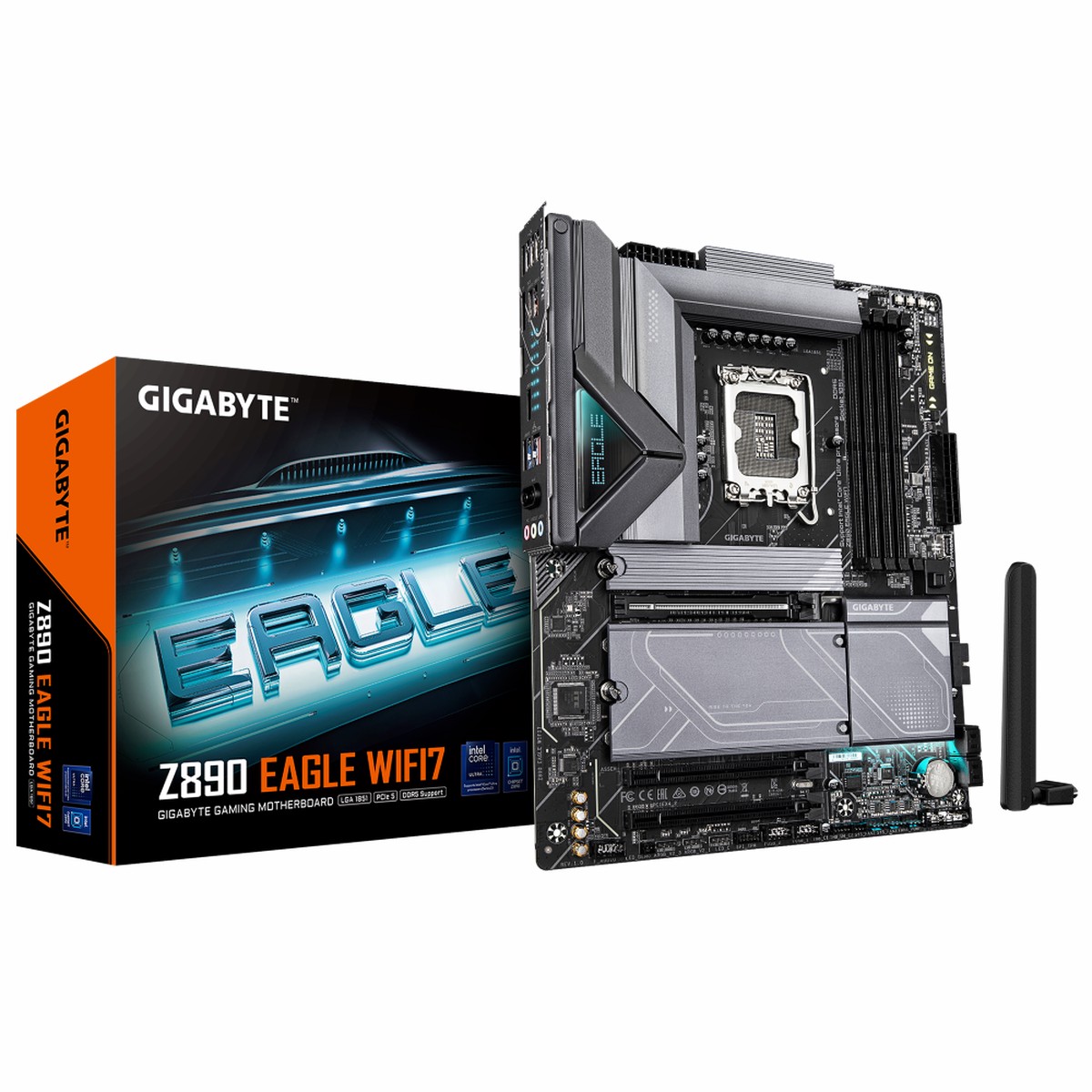

Name: GIGABYTE Z890 Eagle Wifi7 DDR5 Intel Motherboard
SKU: LZ8481869061
Availability: InStock

Description
Reviews (0)

Features of GIGABYTE Z890 Eagle Wifi DDR5 Intel Motherboard

GIGABYTE Z890 Eagle Wifi DDR5 Intel Motherboard Supports Intel Core Ultra processors (Series 2)
Digital twin14+1+2 phases VRM solution
D5 Bionic Corsa for Infinite Memory Performance
AI Perfdrive: Provides optimal and customized BIOS preset profile for users
Premium Compatibility: 4*DDR5 with XMP Memory Module Support
WIFI EZ-Plug: Quick and easy designfor Wi-Fi antenna installation
EZ-Latch Plus: PCIe and M.2slots with Quick Release & Screwless Design
EZ-Latch Click: M.2 heatsinks with screwless design
Friendly UI: Multi-Theme, AIO FanCon
trol, and Q-Flash Auto Scan in BIOS and SW
NewPower Monitorin HWinfo for real-time monitoring onCPU power phases
Ultra-Fast Storage: 4*M.2 slots, including 1* PCIe 5.0 x4
Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
FastNetworking: 2.5GbE LAN& Wi-Fi 7
Extended Connectivity: USB4 Type-C with DP-Alt, DisplayPort
PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card

Infinite Memory Performance

EAGLE motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.

AORUS AI SNATCH

Automatic overclocking software by AI models.

AI Perfdrive

Provides optimal and customized BIOS preset profile for user.

Premium Compatibility

Four DDR5 slots with XMP memory module support.

WIFI EZ-Plug

Quick and easy design for Wi-Fi antenna installation.

EZ-Latch Plus

PCIe and M.2 slots with quick release and screwless design.

EZ-Latch Click

M.2 heat sinks with screwless design.

Sensor Panel Link

Onboard video port for hassle-free in-chassis panel setup.

Friendly UI

Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.

Power Monitor

New Power Monitor in HWinfo for real time monitoring on CPU power phases.

Fast Storage

Four M.2 slots, including one PCIe 5.0 x4 slot.

Efficient Thermals

VRM Thermal Armor Advanced and M.2 Thermal Guard L.

Fast Networking

2.5GbE LAN & Wi-Fi 7 (802.11be) with directional ultra-high gain antenna.

Extended Connectivity

USB4 with DisplayPort support via USB-C.

PCIe UD Slot X

PCIe 5.0 x16 slot with 10x greater strength for graphics cards.

Digital Twin VRM Design

Delivers consistent, high-powered performance to elevate your overclocking to the next level.

Specifications of GIGABYTE Z890 Eagle Wifi DDR5 Intel Motherboard

CPU	LGA1851 socket: Support for Intel Core Ultra Processors
Chipset	Intel Z890 Express Chipset
Memory	Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture
Onboard Graphics	Integrated Graphics Processor-Intel HD Graphics support: – 1 x USB4 USB Type-C port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840×2160@144 Hz * Support for DisplayPort 2.1 version – 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz * Support for DisplayPort 2.1 version
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
LAN	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.4 – Support for 11be 160MHz wireless standard Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.1) – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.4 – Support for 11be 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country’s regulations.
Expansion Slots	CPU: – 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: – 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/2)
Storage Interface	CPU: – 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) – 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: – 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) – 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) – 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB	CPU: – 1 x USB4 USB Type-C port on the back panel Chipset: – 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header – 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel – 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: – 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x power button 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper
Back Panel Connectors	1 x USB4 USB Type-C port (DisplayPort (Note)) 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x DisplayPort (Note) 2 x antenna connectors (2T2R) 1 x RJ-45 port 3 x audio jacks (Note) Actual support may vary by CPU.
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Operating System	Support for Windows 11 64-bit
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
