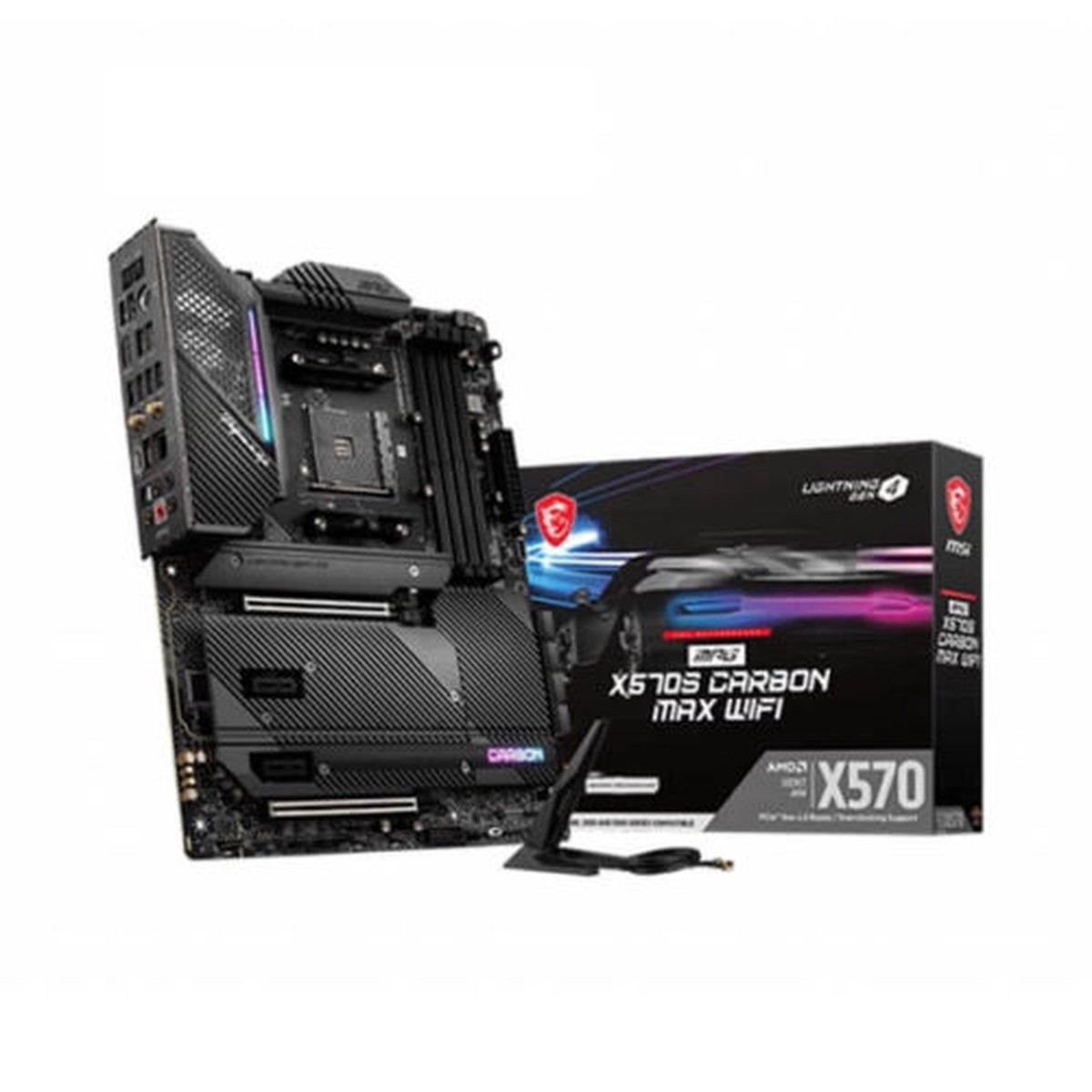

Name: MSI MPG X570S Carbon Max Wifi DDR4 AMD Motherboard
SKU: LZ8481875677
Availability: InStock

Description
Reviews (0)

Feature of MSI MPG X570S Carbon Max WiFi DDR4

Supports AMD Ryzen 5000 series, 5000 G-series, 4000 G-series, 3000 series, 3000 G-series, 2000 series and 2000 G-series desktop processors
Supports DDR4 Memory, up to 5300+(OC) MHz
Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2
Enhanced Power Design: 14+2 Duet Rail Power System, 8-pin plus 4-pin CPU power connectors, Core Boost, DDR4 Boost
Premium Thermal Solution: Aluminum cover, heat-pipe, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
Pre-installed I/O Shield: Better EMI protection and more convenience for installation

M.2 SHIELD FROZR

Worlds fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.

FULLY CONTROLLABLE IN BIOS AND SOFTWARE

MSI MPG X570S Carbon Max Wifi DDR4 motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

DIY 2.0 INTEGRATING WITH THE SYSTEM ENVIRONMENT

Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.

POWER SYSTEM

Unleash and sustain maximum performance with an aggressive VRM design built with a total of 14 Duet Rail Power System(DRPS). Combining dual power connectors and exclusive Core Boost technology, MPG series motherboard is ready to sustain heavy daily work.

CORE BOOST

Core Boost technology combines MSIs premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. This creates the perfect conditions for multi-core CPU while high-loading operation.

PRE-INSTALLED I/O SHIELD

Featuring the Pre-installed I/O Shield, makes your installation process easier and safer. The patent-pending design protect your IO ports and also prevent electrostatic discharge damage, makes your motherboard a strong gaming foundation.

STEEL ARMOR

MSI PCI Express Steel Armor slot is secured to the motherboard with extra solder points and supports the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

ULTIMATE MOTHERBOARD PROTECTION

Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.

Specifications of MSI MPG X570S Carbon Max WiFi DDR4


Processor	Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors1 Supports Socket AM4
Chipset	AMD X570 Chipset
Memory	4x DDR4 memory slots, support up to 128GB Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC1 Max frequency by A-XMP OC mode: For Ryzen 5000 G-Series & 4000 G-Series processors 1DPC 1R Max speed up to 5300 MHz 1DPC 2R Max speed up to 4266 MHz 2DPC 1R Max speed up to 4400 MHz 2DPC 2R Max speed up to 3600 MHz For Ryzen 5000 Series & 3000 Series processors 1DPC 1R Max speed up to 5100 MHz 1DPC 2R Max speed up to 4000 MHz 2DPC 1R Max speed up to 4000 MHz 2DPC 2R Max speed up to 3600 MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory
Expansion Slots	Supports PCIe 4.0 / PCIe 3.0 PCIe 4.0 is available only on AMD Ryzen 5000 Series and 3000 Series desktop processors 1x PCIe x16 slot (From processor) PCI_E1 supports PCIe 4.0/ 3.0 x16 PCI_E1 supports PCIe 3.0 x8 on AMD Ryzen 3000 G-and 2000 G- series desktop processors 1x PCIe x16 slot (From X570 chipset) PCI_E41 supports PCIe 4.0/ 3.0 x4 2x PCIe 3.0 x1 slots (From X570 chipset)
Onboard Graphics	1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz
Multi-GPU	Supports AMD CrossFire Technology
Storage	8x SATA 6Gb/s ports (From X570 chipset) 4x M.2 slots (Key M) Supports PCIe 4.0 / PCIe 3.0 PCIe 4.0 is available only on AMD Ryzen 5000 Series and 3000 Series desktop processors M2_1 (From processor) Supports 2242/ 2260/2280/22110 storage devices Supports up to SATA 6Gb/s M2_2, M2_31 and M2_4 slots (from AMD X570 Chipset) M2_2 & M2_4 slots support 2242/ 2260/ 2280 storage devices M2_3 slot supports 2242/ 2260/2280/22110 storage devices M2_2 & M2_3 slots support up to SATA 6Gb/s
RAID	AMD X570 Chipset Supports RAID 0, RAID 1 and RAID 10
USB	AMD X570 Chipset 1x USB 3.2 Gen 2 10Gbps Type-C internal connector 4x USB 3.2 Gen 1 5Gbps ports are available through internal USB connectors 2x USB 2.0 ports on the back panel Asmedia 1074 Chipset4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panelGL850G Hub4x USB 2.0 ports are available through the internal USB connectorsAMD Processor 4x USB 3.2 Gen 2 10Gbps ports (3 Type-A ports and 1 Type-C port on the back panel
Audio	Realtek ALC4080 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
LAN	1x Realtek RTL8125B 2.5 Gbps LAN controller
WiFi & Bluetooth	Intel Wi-Fi 6E AX210 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz1 (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.22, FIPS, FISMA
Internal connectors	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 8x SATA 6Gb/s connectors 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x 4-pin CPU fan connector 1x 4-pin water-pump connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 2-pin Thermal sensor connector 1x TPM module connector 1x Clear CMOS jumper
LED Feature	1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1x 3-pin CORSAIR LED connector 4x EZ Debug LED 1x 2-Digit Debug Code LED 1x EZ LED Control switch
Back panel ports	Clear CMOS Button Keyboard / Mouse USB 3.2 Gen 2 10Gbps Type-A 2.5G LAN Audio Connectors Flash BIOS Button USB 2.0 HDMI USB 3.2 Gen 1 5Gbps Type-A Wi-Fi / Bluetooth USB 3.2 Gen 2 10Gbps Type-A/C Optical S/PDIF Out
Dimensions	ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Mounting	9 mounting holes
Operating System	Support for Windows 10 64-bit
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.
