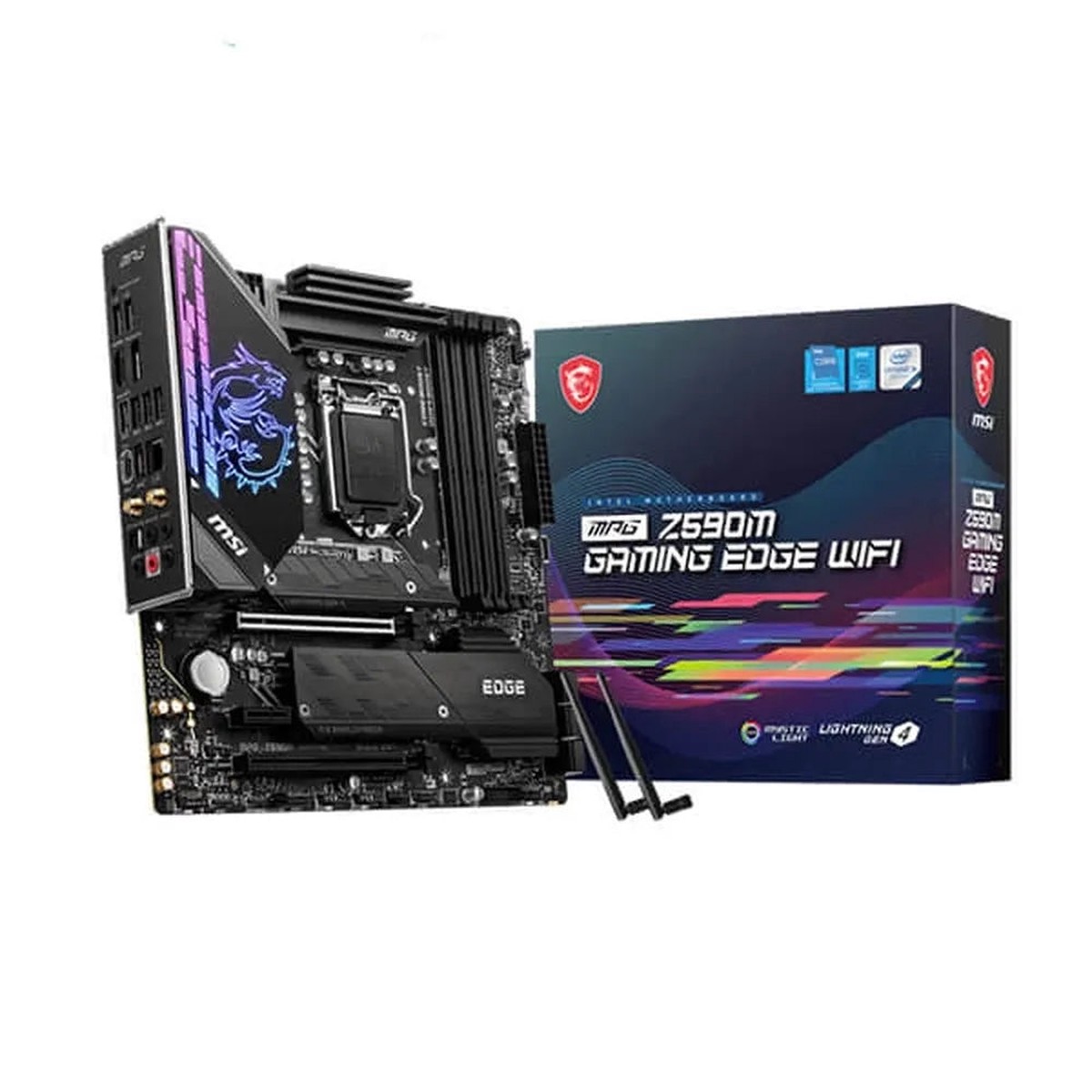

MSI MPG Z590M Gaming Edge WIFI Motherboard

Features of MSI MPG Z590M Gaming Edge WIFI Motherboard

• Supports 11th and 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket
• Supports DDR4 Memory, up to 5333(OC) MHz
• Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2
• Enhanced Power Design: 12+1+1 Duet Rail Power System, 8+4 pin CPU power connectors, Core Boost, DDR4 Boost
• Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and 2x M.2 Shield Frozr are built for high performance system and non-stop gaming experience
• MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
• 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
• High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
• Pre-installed I/O Shield: Better EMI protection and more convenience for installation

Thermal Solutions

The MSI MPG Z590M Gaming Edge WIFIenables you to install fan- or liquid-cooling systems, allowing you to choose a thermal solution that best fits your custom build. An extended heatsink covers essential components and the signature M.2 Shield Frozr keeps your NVMe solid-state drive cool under heavy loads. Frozr AI Cooling automatically detects temperatures across your components and adjusts to meet thermal performance with performance, silent, and manual modes. Fully Fan Control enables you to manually adjust parameters while feeding you information in real-time for proper monitoring.

Power Design

Leveraging a 12+1+1 Duet Rail Power System, the MPG Z590M can deliver ample power while maintaining electrical load for optimal efficiency. Core Boost technology directs power to the CPU quicker, creating proper conditions suitable for overclocking which can be accessed with Game Boost software. Load-line calibration, overvoltage protection, digital power design, and double power connectors all work together to provide additional operational enhancements essential for high-end gaming.

DIY Friendly Design

Whether you are a seasoned or amateur builder, the MPG Z590 is designed for simplicity and durability, giving you everything you need to put together a gaming-optimized PC. A pre-installed I/O shield makes installation easier, while the keep-out zone protects onboard circuitry from contacting case standoffs. The included screwdrivers, USB drive, and cleaning brush allow you to easily install and maintain the look of your MPG Z590. Battery sticker, cable labels, and case badge offer a level of customization and organization to your build. Additionally, an EZ debug LED system tells you if components are experiencing any issues, reducing time spent on troubleshooting.

Power Protection

Sporting a 2oz thickened copper 6-layer printed circuit board, you get improved heat dissipation and enhanced performance reliability for standard and overclocked modes. Double ESD protection prevents shorts by adding another grounding layer to mounting holes. The overall build of the MPG Z590M makes it certified for gaming, ensuring your motherboard can handle fast-paced titles.

Performance Enhancements

DDR4 Boost and XMP capabilities ensure optimal performance with a wide range of memory manufacturers, ensuring proper configurations whether you are in overclocked or standard modes. MSI Lightning Gen 4 connectivity protocol enables enhanced speeds up to 64 Gb/s for PCIe slots and M.2 interfaces when the MPG Z590M is paired with an 11th Gen Intel processor. Intel Optane support is also available, enabling you to install compatible M.2 devices to enhance the speed of your hard-disk drives.

Connectivity

Connect to your network via wireless or wired options with Wi-Fi 6E and 2.5 Gigabit LAN, respectively, each providing viable options when gaming or enjoying your favorite media. LAN Manager automatically prioritizes games above other applications, allows you to change traffic priority, and enables custom bandwidth for each application for low-latency gaming. A USB 3.2 Gen 22 Type-C port offers transfer speeds up to 20 Gb/s, allowing you to take advantage of high-powered peripherals such as audio and video interfaces. A front-end USB 3.2 Gen 2 Type-C connector gives you instant access to quick downloads and fast mobile device charging.

High-End Audio

Immerse yourself deep into your virtual worlds with high-definition audio, delivered using Realtek ALC4080 dedicated audio processor, high-quality audio capacitors, five 3.5mm audio jacks, and a dedicated audio amplifier. The isolated audio design separates the audio traces from the rest of the board components to reduce electrical crosstalk. Separated audio layers provide clean left and right channels with a dedicated PCB design. De-pop protection reduces the popping sound when connecting and disconnecting your headphones.

BIOS & Software

Adjust various system parameters with MSI Center, a suite of software utilities that are centralized to give you quick access to advanced motherboard features. True color, live update, user scenario, hardware monitor, OC setting, total fan control, mystic light, and product registration all work together to streamline operations and simplify your overall experience.

Mystic Light Headers

Add a layer of personality to your build with MSIs Mystic Light software, giving you a choice from 16.8-million colors and 29 LED effects, enabling you to explore your creativity and make a unified aesthetic.

Specifications of MSI MPG Z590M Gaming Edge WIFI
