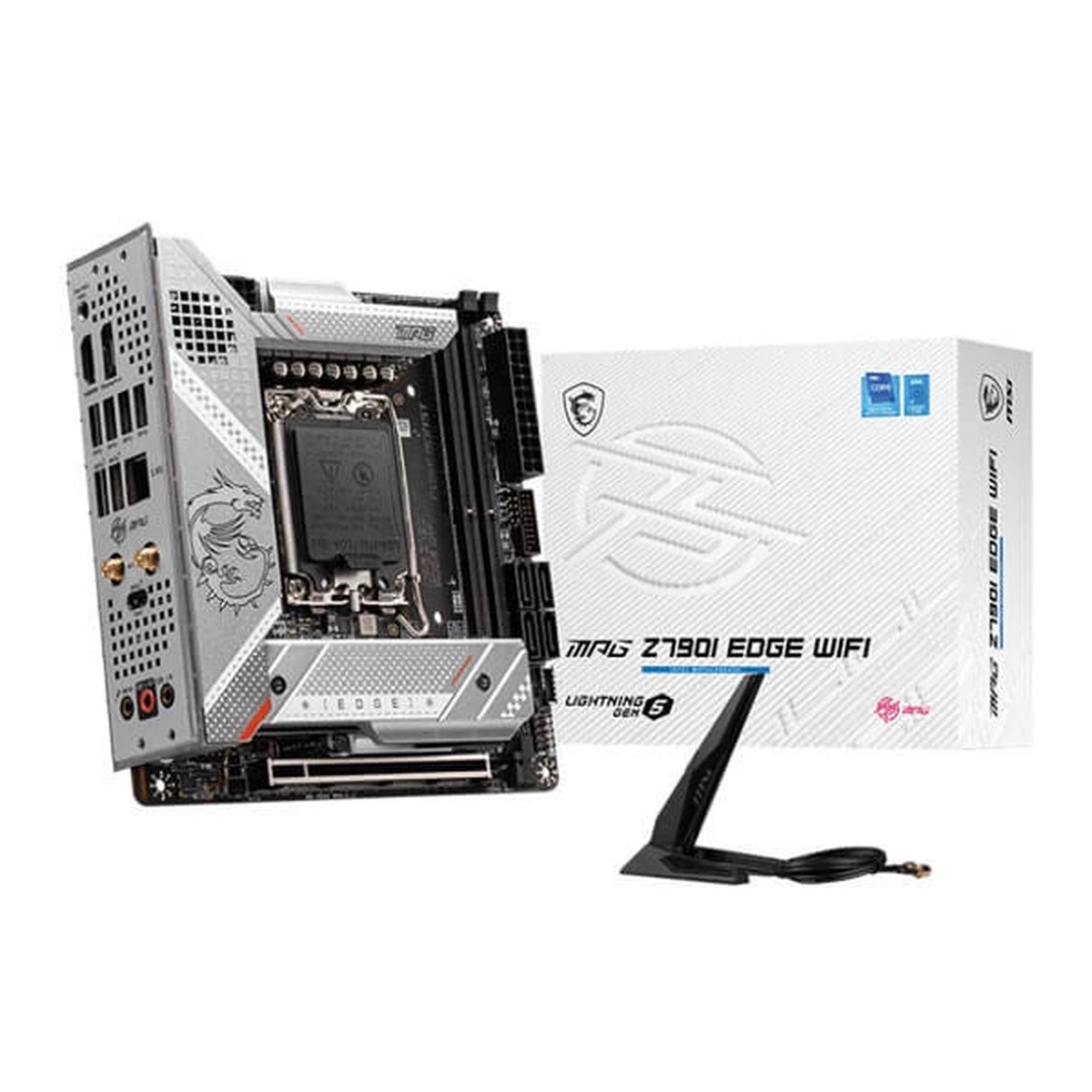

Name: MSI MPG Z790I Edge Wifi DDR5 Intel Motherboard
SKU: LZ8481875679
Availability: InStock

Description
Reviews (0)

Features Of MSI MPG Z790I Edge Wifi

MSI MPG Z790I Edge Wifi Supports 13th /12th Gen Intel Core / Pentium / Celeron processors for LGA 1700 socket
Supports DDR5 Memory, up to 8000+(OC) MHz
Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 22
Enhanced Power Design: Direct 10+1+1 phases power, Core Boost, Memory Boost
Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
High Quality PCB: 12-layer PCB made by server grade level material
Pre-installed I/O Shield: Better EMI protection and more convenience for installation

Cooling

Extended Heatsink

Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.

Frozr Heatsink

The active cooling solution is ready to release the maximum performance.

Heat-pipe

Connecting two MOS heatsinks to enlarge the surface of heat dissipation.

MOSFET Baseplate

Baseplate on the back to keep MOSFET in lower temparature, ensuring better heat dissipation effect.

7W/mK Thermal Pad

High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performance.

M.2 Shield Frozr with Chipset Heatsink

Keeps M.2 SSDs safe while preventing throttling, making them run faster.

LIGHTNING GEN 5 PCI-E

Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.

SMT PCIE 5.0 SLOT

The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.

REINFORCED, HEAVY SOLDERED CONNECTIONS

Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.

LATEST DDR5 MEMORY WITH SMT SLOT

A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MPG Z790I EDGE WIFI is ready to deliver the world class memory performance.

The advanced SMT(Surface Mount Technology) welding process reduces the defect rate of slot solder joints, electromagnetism, and interference. Combining with exclusive Memory Boost technology allows MSI motherboards to deliver the clean and pure high-frequency DDR5 signal.

EASY OVERCLOCKING WITH XMP PROFILE

The XMP (Extreme Memory Profiles) in MSI BIOS are tested and certified by MSI OC LAB. It is easy to enable with auto power settings to get the best memory speed and stability.

EXTEND YOUR RGB EXPERIENCE WITH EASE

Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

MSIs premium network solution provides incredible data transfer speed for demanding users.

Specifications Of MSI MPG Z790I Edge Wifi

Model	MPG Z790I EDGE WIFI
Chipset	INTEL Z790
CPU Support	Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700
Memory	2x DDR5, Maximum Memory Capacity 64GB Memory Support 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: 1DPC 1R Max speed up to 8000+ MHz 1DPC 2R Max speed up to 7200+ MHz Supports Intel XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Onboard Graphics	1x HDMI 1x DisplayPort Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz Support DP 1.4, maximum resolution of 4K 60Hz
Slot	1x PCI-E x16 slot (Qty) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
Storage	3x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices 4x SATA 6G (Qty)
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 for M.2 NVMe storage devices
USB	2x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 2x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2x2 Type C (Rear) 1x USB 3.2 Gen2x2 Type C (Front)
LAN	Intel 2.5Gbps LAN
Wireless Lan & Bluetooth	Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA
Audio	Realtek ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-Bit/384 kHz playback on front panel
Internal IO	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 1x System Fan 1x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x TPM pin header(Support TPM 2.0) 2x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen 2×2 Type C ports
LED Features	4x EZ Debug LED
Back Panel Ports	Display Port 2.5G LAN USB 3.2 Gen 2×2 20Gbps (Type-C) Audio Connectors Clear CMOS HDMI USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-A) Wi-Fi / Bluetooth
Operating System	Support for Windows 11 64-bit, Windows 10 64-bit
PCB Info	Mini-ITX 170mmx170mm
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.
