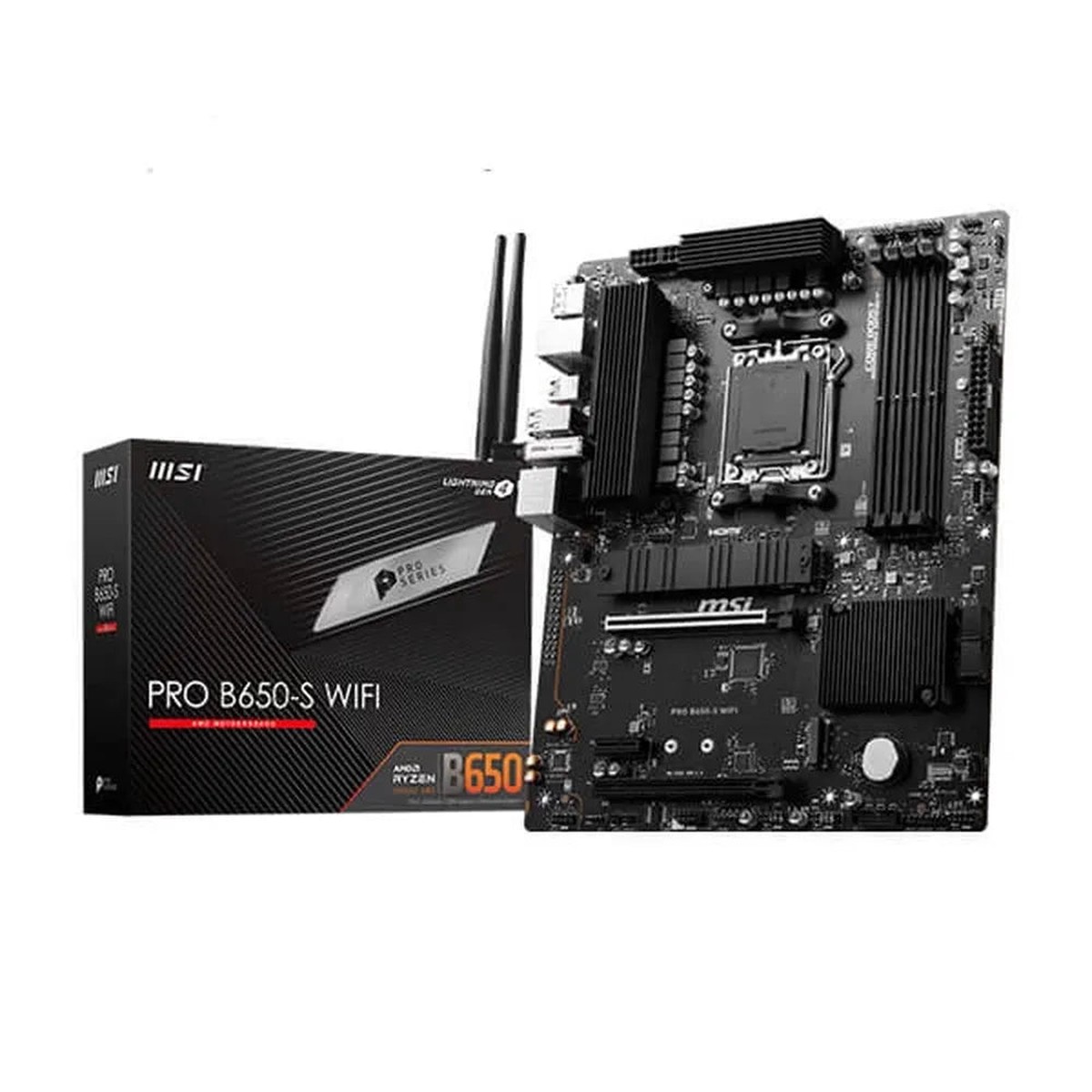

Name: MSI Pro B650-S WIFI DDR5 AMD Motherboard
SKU: LZ8481874105
Availability: InStock

Description
Reviews (0)

Features Of MSI Pro B650-S WIFI DDR5 AMD Motherboard

MSI Pro B650-S WIFI Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

12+2+1 POWER DESIGN

Unleash and sustain the maximum performance with a flagship VRM design built with a total of 12+2+1 power design. Combining dual power connectors and exclusive Core Boost technology, PRO B650-S WIFI is ready for the challenge of high-end processors.

OPTIMIZED PCB SOLUTION

The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

LIGHTNING GEN 4 PCI-E

MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.

REINFORCED,
HEAVY SOLDERED CONNECTIONS

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

FAST AND FUTURE-READY STORAGE

MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

LATEST DDR5 MEMORY WITH SMT SLOT

A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, PRO B650-P WIFI is ready to deliver the world class memory performance.

The advanced SMT(Surface Mount Technology) welding process reduces the defect rate of slot solder joints, electromagnetism, and interference. Combining with exclusive Memory Boost technology allows MSI motherboards to deliver the clean and pure high-frequency DDR5 signal.

EASY OVERCLOCKING WITH EXPO PROFILE

MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Easy to enable EXPO profile with auto power settings to get the best memory speed and stability.

EXTEND YOUR RGB EXPERIENCE WITH EASE

Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

MSIs premium network solution provides incredible data transfer speed for demanding users.

Specifications Of MSI Pro B650-S WIFI DDR5 AMD Motherboard

Model	PRO B650-S WIFI
Chipset	AMD B650
CPU SUPPORT	Supports AMD Ryzen 7000 Series Desktop Processors Socket AM5
Memory	4x DDR5, Maximum Memory Capacity 192GB Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: 1DPC 1R Max speed up to 7200+ MHz 1DPC 2R Max speed up to 6000+ MHz 2DPC 1R Max speed up to 6000+ MHz 2DPC 2R Max speed up to 5400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO
Onboard Graphics	1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Supports DP1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT	2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Multi-GPU	AMD MULTI-GPU Support
Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G
RAID	Supports RAID 0 and RAID 1 for SATA storage devices* Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB	4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN	Realtek 8125BG 2.5G LAN
WIRELESS / BLUETOOTH	AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3** * Wi-Fi 6E 6GHz may depend on every countrys regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio
Internal I/O	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports
LED FEATURE	4x EZ Debug LED
BACK PANEL PORTS	DisplayPort 2.5G LAN USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 1 5Gbps (Type-A) Wi-Fi / Bluetooth Audio connectors Flash BIOS Button HDMI USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2×2 20Gbps (Type-C)
OPERATING SYSTEM	Support for Windows 11 64-bit, Windows 10 64-bit
PCB Dimension (W L)	ATX 243.84mmx304.8mm
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.
