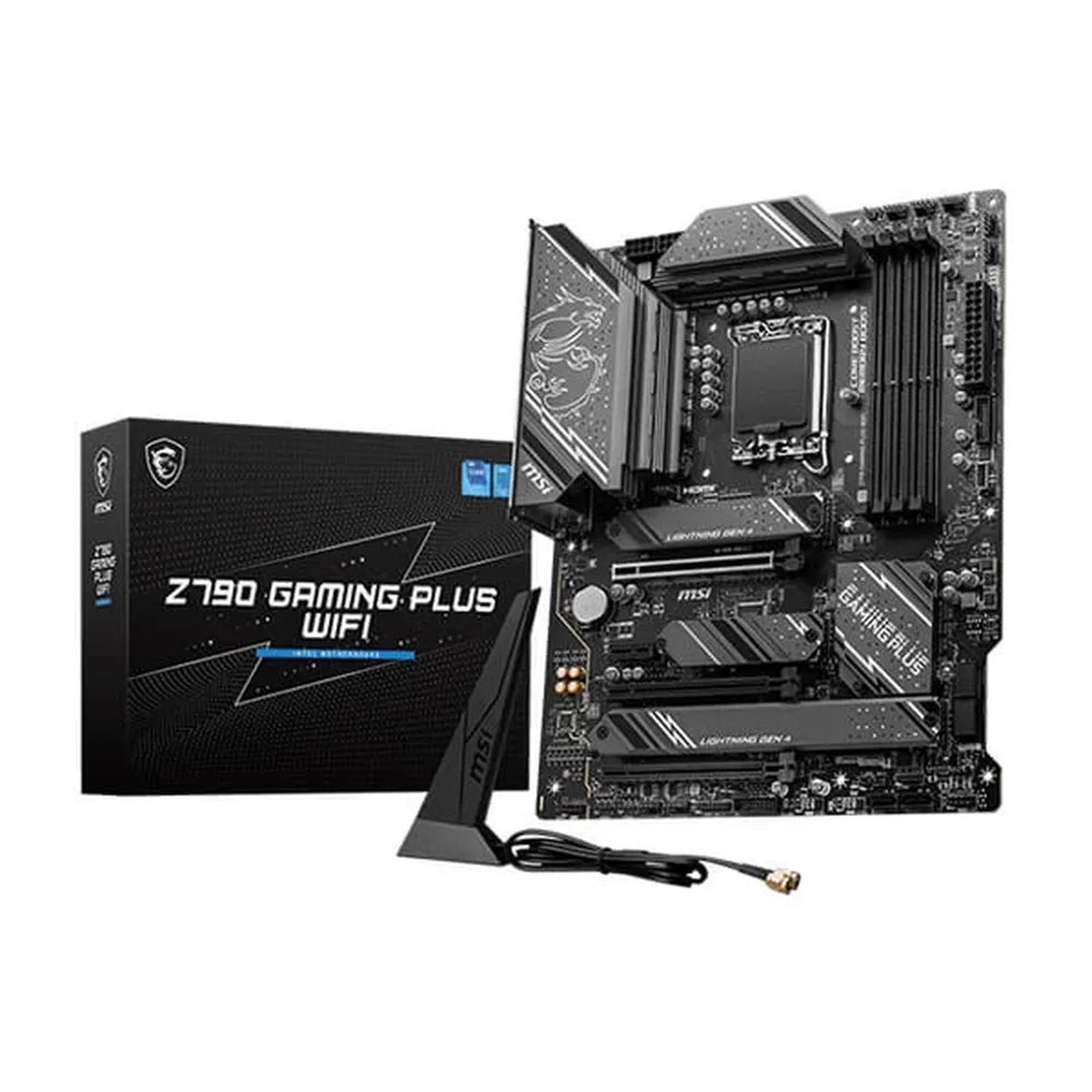

Name: MSI Z790 Gaming Plus Wifi DDR5 Intel Motherboard
SKU: LZ8481874112
Availability: InStock

Description
Reviews (0)

Features Of MSI Z790 Gaming Plus Wifi DDR5 Intel Motherboard

Supports Intel Core 14th, 13th and 12th Gen Processors, Intel Pentium Gold, Celeron Processor and Intel Processor 300(T) for LGA 1700 socket
MSI Z790 Gaming Plus Wifi DDR5 Memory, up to 7200+(OC) MHz
Enhanced Power Design:14+1+1 Duet Rail Power System with DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost
Premium Thermal Solution:Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
Lightning Fast Game experience:PCIe 5.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2×2 20G
High Quality PCB:6-layer PCB made by 2oz thickened copper
Audio Boost:Reward your ears with studio grade sound quality for the most immersive gaming experience

Specifications Of MSI Z790 Gaming Plus Wifi DDR5 Intel Motherboard

Model	Z790-GAMING-PLUS-WIFI
Chipset	INTEL Z790
CPU SUPPORT	Support Intel Core 14th, 13th and 12th Gen Processors, Intel Pentium Gold, Celeron Processor and Intel Processor 300(T) LGA 1700
Memory	4x DDR5, Maximum Memory Capacity 192GB Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: 1DPC 1R Max speed up to 7200+ MHz 1DPC 2R Max speed up to 6600+ MHz 2DPC 1R Max speed up to 6400+ MHz 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Onboard Graphics	1x HDMI Support HDMI 2.1 HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT	3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage	4x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
USB	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 4x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN	Intel 2.5Gbps LAN
WIRELESS / BLUETOOTH	Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every countrys regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Internal I/O	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports 1x USB4 card connector (JTBT_U4_1, supports RTD3)
LED FEATURE	4x EZ Debug LED
BACK PANEL PORTS	Keyboard / Mouse DisplayPort USB 2.0 2.5G LAN Port Wi-Fi / Bluetooth Antenna Audio Connectors Flash BIOS Button USB 2.0 HDMI 2.1 Port USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 2×2 20Gbps Type-C USB 3.2 Gen 2 10Gbps Type-A
OPERATING SYSTEM	Support for Windows 11 64-bit, Windows 10 64-bit
PCB Dimension (W L)	ATX 243.84mmx304.8mm
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.
