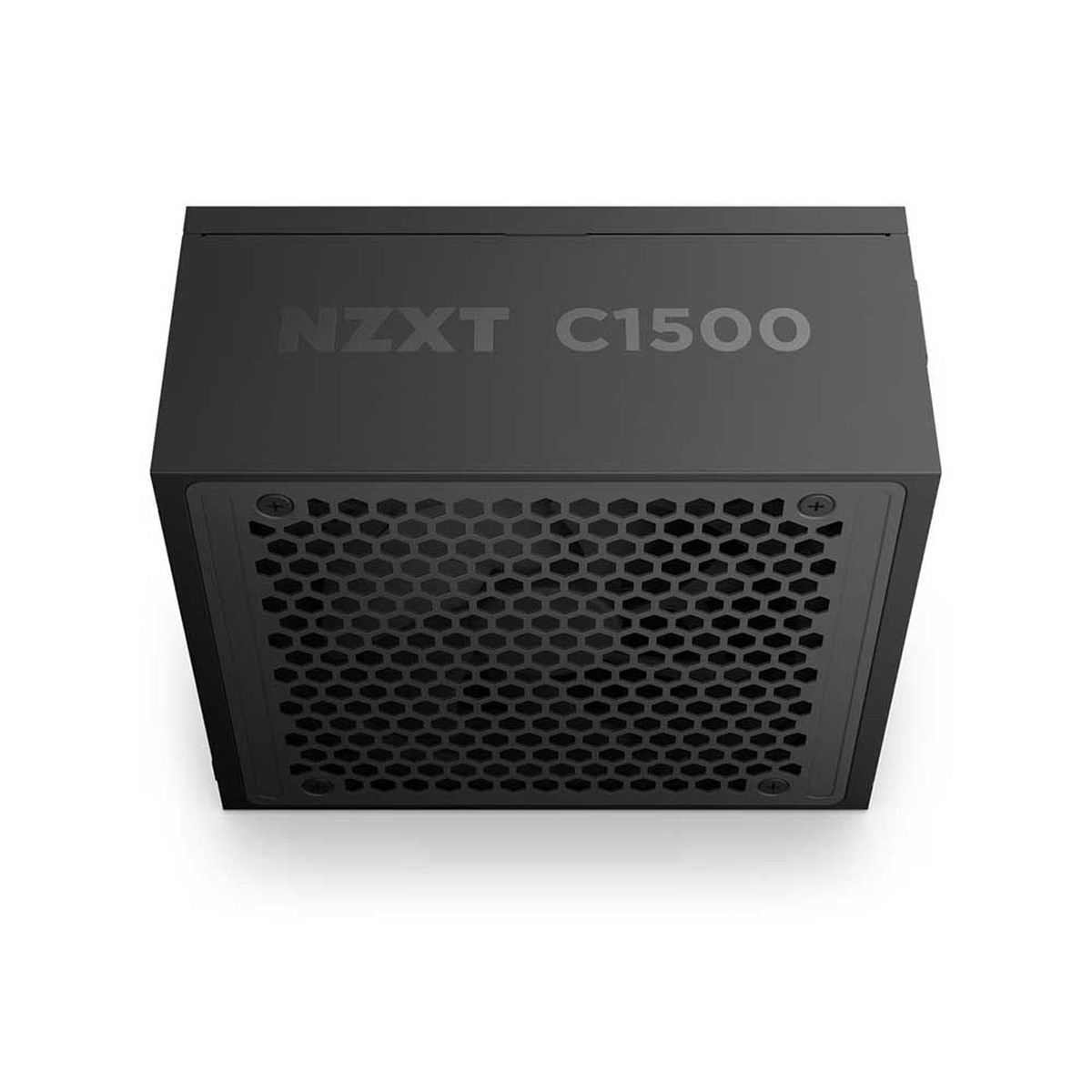

Name: NZXT C1500 1500W 80+ Platinum Fully Modular ATX 3.1 Power Supply
SKU: LZ8481869856
Availability: InStock

Description
Reviews (0)

Features of NZXT C1500 1500W 80+ Platinum Fully Modular ATX 3.1 Power Supply

The NZXT C1500 Platinum 1500w Power Supply offers highly efficient, digitally-controlled power, ATX 3.1 compliance, and PCIe 5.1 connectivity with a high-performance magnetic levitation fan.

Designed with ATX 3.1 and PCIe 5.1 compliance to power current and future generations of high-performance GPUs and CPUs.
Includes two 16-pin 12V-2×6 PCIe 5.1 cables, each capable of delivering over 600 watts to power-hungry GPUs.
Digital power enables precise voltage regulation, resulting in higher efficiency and lower ripple noise.
Exceeding 80 Plus Platinum standards, the 94% efficiency reduces power consumption for lower monthly bills and cooler, quieter operation.
Certified for ultra-high efficiency and ultra-low noise with Cybenetics Titanium efficiency and Cybenetics A- noise level ratings.
140mm magnetic levitation fan uses air-suspended blades for low noise, high airflow, and a long lifespan.
Constructed using high-quality 105C Japanese capacitors for excellent reliability and long-lasting performance.
Fully modular design simplifies cable management, allowing for the connection of only necessary cables.
Compact 180mm form factor optimizes valuable case space while promoting improved airflow.

Future-Proof Power

ATX 3.1 and PCIe 5.1 compliance supports current and future high-performance GPUs and CPUs.

Dual PCIe 5.1 Connectors

Equipped with two 16-pin 12V-2×6 cables to power GPUs drawing more than 600 watts.

Digital Power

Enables precise voltage regulation, resulting in higher efficiency and lower ripple noise.

Exceptional Efficiency

Exceeding 80 Plus Platinum standards, the 94% efficiency lowers power usage and ensures quieter, cooler operation.

Magnetic Levitation Fan

NZXT Power Supply140mm fan uses air-suspended blades to minimize noise, extend lifespan, and boost airflow.

Built with Quality

Constructed using all 105C Japanese capacitors for unmatched reliability.

Fully Modular Design

Simplifies cable management by allowing connection of only necessary cables.

Space-Saving Size

Compact 180mm form factor optimizes case space while promoting improved airflow.

Peace of Mind

Backed by a 10-year warranty and reliable customer support.

Specifications of NZXT C1500 1500W 80+ Platinum Fully Modular ATX 3.1 Power Supply

Model:	PA-5P1BB-UK
Output Connectors
24-pin ATX Power Cable:	1
4+4-pin CPU Power Cable:	1
8-pin CPU Power Cable:	1
6+2-pin PCIe Power Cable:	6
16-pin (12+4) 12V-2×6 PCIe Cable:	2
SATA Cable:	12
Peripherals Cable:	4
Electrical Features
PF Correction:	Active @0.99
Protections:	OVP (Overvoltage Protection) / UVP (Undervoltage Protection) / SCP (Short Circuit Protection) / OTP (Over Temperature Protection) / OPP (Overpower Protection) / OCP (Overcurrent Protection)
Cable Specs
24-pin ATX Power Cable:	600mm with nylon sleeving
4+4-pin CPU Power Cable:	700mm with nylon sleeving
8-pin CPU Power Cable:	700mm with nylon sleeving
6+2-pin PCIe Power Cable:	650mm with nylon sleeving
16-pin (12+4) 12V-2×6 PCIe Cable:	650mm with nylon sleeving
SATA Cable:	500 + 150 mm with nylon sleeving
Peripherals Cable:	500 + 150 mm with nylon sleeving
AC Input Rating
100 – 240Vac:	15A-9A 50Hz-60Hz
200 – 240Vac:	9A 50Hz-60Hz
DC Output Rating
3.3V / +5V:	22A (120W)
12V:	125A (1500W)
5Vsb:	3A (15W)
Total:	1500W (115-240Vac) / 1300W (100-115Vac)
Energy Efficiency
Rating:	80 Plus Platinum
10% loading:	92% @115Vac
20% loading:	94% @115Vac
50% loading:	93.8% @115Vac
100% loading:	90.8% @115Vac
Fan Specs
Dimensions:	140 x 140 x 25 mm
Speed:	2500 10% RPM
Airflow:	125 CFM (Tpy.)
Noise:	41.0 dBA max
Bearing:	Magnetic Levitation Bearing (ML)
Operation
MTBF:	100,000 hours
Temperature:	0 – 50 C
Dimensions
Width:	5.91 in / 150 mm
Height:	3.39 in / 86 mm
Depth:	7.09 in / 180 mm
General
Material(s):	Steel, PCB and Plastic
Compliance Standard:	ATX12V v3.1 / EPS12V v2.92
Warranty:	10 Years
Note	* Features, Price, Specifications are subject to change without notice. *Images are for representation purpose only
