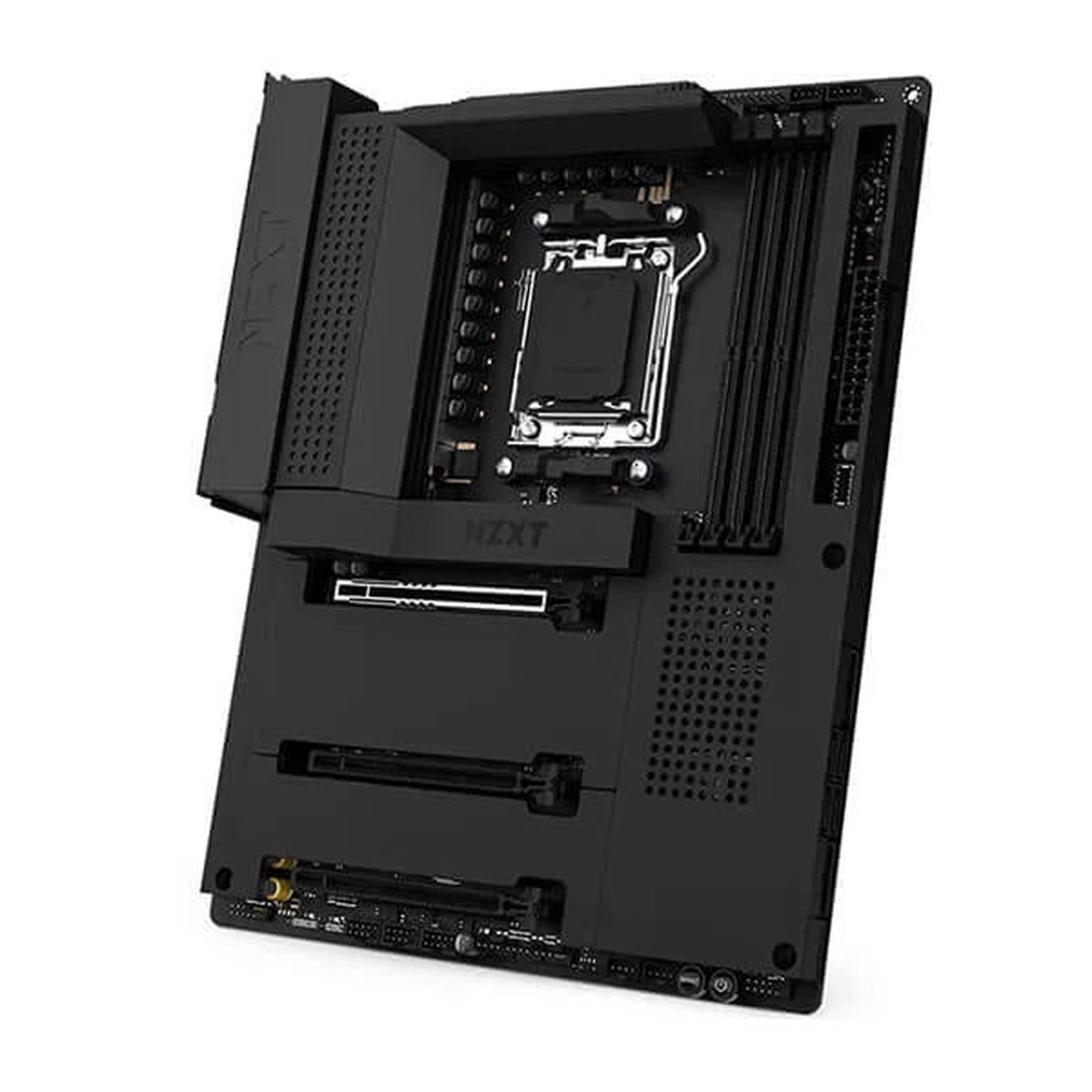

Name: NZXT N7 B650E Wifi DDR5 AMD Motherboard (Black)
SKU: LZ8481877721
Availability: InStock

Description
Reviews (0)

Features of NZXT N7 B650E Wifi DDR5 AMD Motherboard

The NZXT N7 series white motherboard enables a visually seamless backdrop for any build with all the features of the reliable AMD B650E chipset. Seamless cover with integrated heat spreader. Digital RGB lighting control through CAM.

Seamless cover with integrated heat spreader
Digital RGB lighting control through CAM
Digital fan control for convenient fan profiles with seven independent fan channels
Integrated rear I/O shield and efficient layout
16+2+1 Power phase design with 90A Smart Power Stage(SPS)

NZXT N7 B650E DDR5 AMD Motherboard with Wi-Fi and NZXT CAM

This motherboard enables a visually seamless backdrop for any build with all the features of the reliable AMD B650E chipset.

Seamless cover with integrated heat spreader

Digital RGB lighting control through CAM, Digital fan control for convenient fan profiles with seven independent fan channels Integrated rear I/O shield and efficient layout
16+2+1 Power phase design with 90A Smart Power Stage(SPS)

Specifications of NZXT N7 B650E Wifi DDR5 AMD Motherboard

Model	N7-B65XT-B1
Brand	NZXT N7 B650E
Chipset	AMD:B650
Memory	DIMM Slots:4 Max Memory Support:128GB Memory Architecture:Dual-Channel OC Frequency:DDR5 Non-ECC, Un-buffered Memory up to 6000+ (OC). Extreme Memory Profile (XMP):Supported EXTended Profiles for Overclocking (EXPO):Supported
CPU	AMD Socket AM5 Ryzen 7000 Series Processors:Supported
Expansion Slots	PCIe 5.0 16 slot (PCIEX16_1), supports 16 mode:1 (Supports NVMe SSD as boot disks) PCIe 4.0 16 slots (PCIEX16_2 and PCIEX16_3), support 2 mode:2 (Supports NVMe SSD as boot disks) M.2 Socket (Key E), supports Type 2230 Wi-Fi/BT PCIe Wi-Fi module:1
Integrated Graphics	Integrated AMD RDNA 2 graphics:Supported HDMI 2.1 TMD Compatible:1 HDR:Supported HDCP 2.3:max. resolution up to 4K 60Hz
Storage	M.2_1, Type 2242/2260/2280 (PCIe 5.0 4 mode):1 M.2_2, Type 2242/2260/2280 (PCIe 4.0 4 mode):1 M.2_3, Type 2242/2260/2280 (PCIe 4.0 2 mode):1 SATA 6Gb/s ports:4 RAID 0/1/10 for SATA storage devices:Supported RAID 0/1/10 for M.2 NVMe storage devices:Supported NVMe SSD as boot disks:Supported
LAN	Realtek:RTL8125BG 2.5G LAN
Wireless	802.11ax Wi-Fi 6E Module:Supported Bluetooth:V5.2
Audio	Realtek:ALC1220 Codec
Rear I/O	Wireless antenna SMA connectors:2 HDMI port:1 USB 2.0:2 USB 3.2 Gen 2 Type-C port:1 USB 3.2 Gen 2 ports:2 USB 3.2 Gen 1 ports:4 Clear CMOS button:1 BIOS Flashback button:1 LAN (RJ45) port:1 Audio jacks:5 Optical S/PDIF Out port:1
Internal I/O	24-pin ATX power connector:1 8+4-pin ATX 12V power connector:1 4-pin CPU_FAN connector:1 4-pin AIO_PUMP connector:1 4-pin SYS_FAN connectors:5 NZXT RGB LED connectors:4 5V ARGB LED connector:2 USB 2.0 header (Up to 6 USB 2.0 ports):3 USB 3.2 Gen1 header (Up to 4 USB 3.2 Gen 1 ports):2 USB 3.2 Gen2 front panel header (For USB Type-C):1 Front panel audio connector:1 Power button:1 Reset button:1 POST LEDs:4
General	System Requirements:NZXT CAM software requires Microsoft Windows 11/10 operating system.
Form Factor	ATX
Certifications	FCC, CE, WHQL, ErP/EuP Ready
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.
