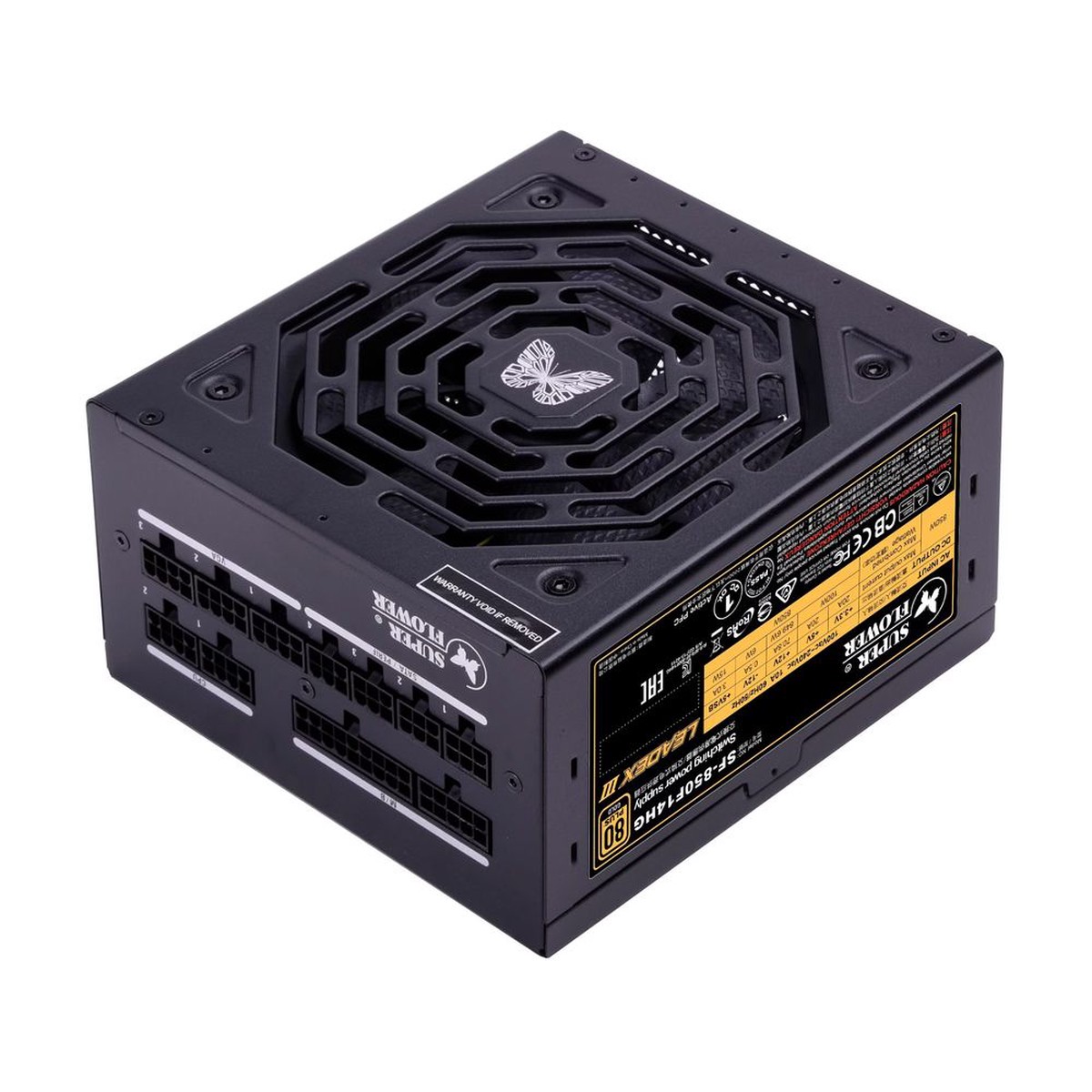

SUPER FLOWER Leadex III 850 80 Plus Gold Fully Modular Power Supply (850 W)

Feature of SUPER FLOWER Leadex III 850 80 Plus

SUPER FLOWER Leadex III 850W Power Supplyare 80PLUS Gold certified with 100% fully modular cable
design, our R&D team’s latest innovation, a brilliant idea to maximize PSU cables &
connectors management to have the best cable routing solution, also increase case
chassis air flow to have best cooling for your system.
Super Flower Power Supplyprovides high efficiency & stable power output and come with a
13cm three-way thermal control intelligent cooling fan to ensure your professional PC
system will work under heavy load, also capable of powering your PC system
equipped with NVIDIA SLI or ATI CrossFireX setup.

100% Fully Modular Cabling Design For Easy Cable Management.
FDB fan with dead silent operation: Auto & Two semi-passive modes of
thermal fan control system.
+12V /+5V /+3.3V output remain stable: Fix unbalanced load regulation testing
on +12V /+5V /+3.3V. (Patent Pending)
The newest EuP technique: highly efficient 5VSB rail with low power
consumption.
Dual Over Power Protection ensure more complete protection and ultimate
safety for end-users.
Great performance on ripple measurement: 10-25mv
Multi-Patent Pending Extreme High Efficiency Main Transformer.
OCP & transient response great improvement.
Fully modular power supply with 80PLUS Gold certification.
High-quality capacitors and semiconductors.
Active PFC, over- and under voltage protection, circuit breaker against
overload and overheating.

LOW NOISE THANKS TOTWO SEMI-PASSIVE MODES

Compared to previous LEADEX Ill series plattorm, the fan pertormance has been optimized
in order to minimise the amount of noise produced, the Fluid Dynamic Bearing fans played a
particularly important role in making this possible. The end users are able to select between
three different cooling modes according to the PC operating environment.
In ECO 0, the fan start operating as soon as the temperatures are between 62C and 68C.
When temperatures fall below 47C and 53C again, the fan stops again.
In ECO 1, the temperature threshold at which the fans start is 42C to 48C, with the lower
threshold being 27C to 33C.
Thanks to the low fan speeds and the FDB bearings, the power supply remains extremely
quiet even in active operation.

MODERN PLATFORM,HIGH-QUALITY COMPONENTS

LLC resonance conversion in the primary range and
DC-DC conversion for the +3.3- and +5-volt rails ensureoverall system stability.
105 degree electrolytic capacitors of Japanese brand
and polymer solid capacitors are used on the motherboardin order to offer the best quality.
Complete protection: with protection against over- andundervoltage (OVP, UVP), short circuit (SCP), overload(OPP), overheating (OTP) and overcurrent (OCP on +3.3 ar
+5 volt rails), the LEADEX Ill always shuts down in anemergency to protect valuable hardware (and itself) fromdamage.

INNOVATIVE DESIGN FOR GAMING SYSTEM & PSU PROTECTION

DC output + 12V/+5V/+3V load regulation remain stableGreat Improvement of unbalanced load in Dynamic load testing on 12V/5V/3.3V railDynamic loading (Iransient response) improvement on +12V/+5V/+3V+ 12V Output With Exceptional Low Ripple Measurements
New patented technology for ultimate safety & performance:Dual Over Power Protection
Multi-Patent Pending Extreme High Efficiency Main TransformerPatent No.: Taiwan 1641006; China 3275019

Get the best 80 Plus Gold computer SMPS price from us today!

Specifications of SUPER FLOWER Leadex III 850 80 Plus
